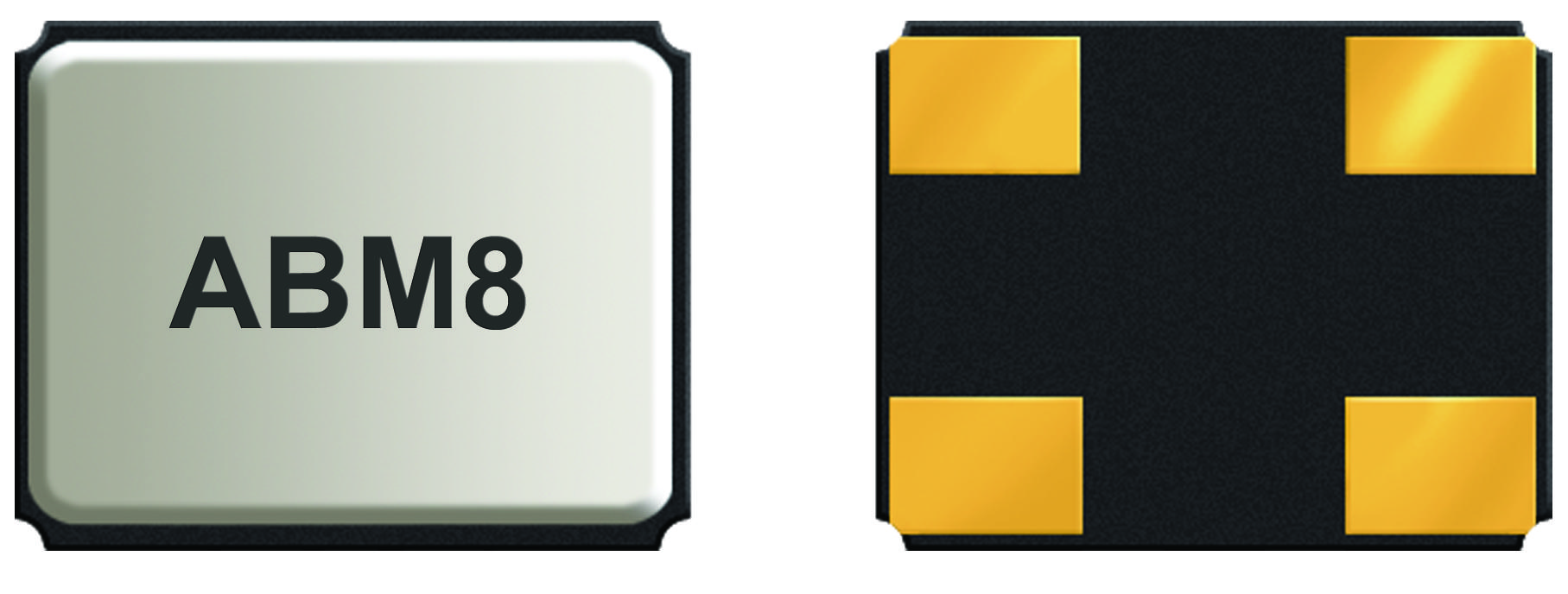

ABRACON ABM813560MHZ12D1XT Miniature SMD Crystal
This ultra miniature ceramic SMD crystal offers high reliability and stability for clock and timing applications in compact electronic devices. Hermetically sealed and moisture sensitive, it supports fundamental and overtone modes with frequencies from 10 MHz to 125 MHz. Its RoHS compliance ensures environmentally safe reflow soldering, making it ideal for high-density, space-constrained designs like modems, communication devices, and test equipment. The compact 3.2x2.5x0.8mm package features tight tolerances, low ESR, and stable frequency performance over temperature ranges from -55°C to +125°C, providing consistent timing accuracy in demanding industrial applications.
ABRACON ABM813560MHZ12D1XT Miniature SMD Crystal Specifications:
- Frequency Range: 10.000 MHz to 125.000 MHz available (Fundamental: 10MHz - 54MHz, 3rd Overtone: 64-125MHz)
- Operation Mode: Fundamental and 3rd Overtone
- Operating Temperature: -10°C to +60°C, Option E, B, C, N up to +185°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over operating temperature
- Equivalent Series Resistance: 30-80 ohms depending on frequency
- Shunt Capacitance (C0): 7.0 pF
- Load Capacitance (CL): 18.0 pF
- Drive Level: 10-100 μW
- Aging: 3 ppm first year
- Insulation Resistance: 500 MΩ at 100V DC
- Size: 3.2x2.5x0.8 mm
- RoHS Compliant, hermetically sealed, suitable for reflow soldering, high-density applications
Buy the Abracon ABM813560MHZ12D1XT – Reliable Crystal for Industrial Applications
Purchase the Abracon Miniature SMD Crystal ABM813560MHZ12D1XT online today to ensure your electronic devices maintain precise timing with high reliability. Its compact 3.2x2.5x0.8mm package, hermetically sealed and RoHS compliant, makes it ideal for space-constrained circuits in industrial, communication, and test equipment applications. With stable frequency performance, low ESR, and an operating temperature range up to +60°C (or higher options), this crystal provides dependable timing control critical for modern electronics, ensuring long-term operational accuracy and environmental safety.
Get Abracon ABM813560MHZ12D1XT today—built for precision and long-lasting durability in your timing circuits.
