ABRACON ABM816000MHZ9B1UT Ceramic SMD Crystal
This ultra miniature ceramic SMD crystal is hermetically sealed for high reliability, suitable for high-density, low-profile applications such as modems and communication devices. Operating within 10 to 125 MHz, it offers tight frequency tolerance of ±50 ppm at +25°C and excellent stability over temperature. Its small size of 3.2x2.5x0.8mm makes it ideal for space-constrained electronic assemblies, with RoHS compliance and moisture sensitivity resistant construction. The crystal ensures precise clock signals in wireless, test equipment, and fundamental oscillator circuits, supporting reflow soldering and demanding environments.
ABRACON ABM816000MHZ9B1UT Ceramic SMD Crystal Specifications:
- Size: 3.2x2.5x0.8 mm
- Frequency Range: 10.000 - 125.000 MHz
- Operation Mode: Fundamental to 3rd Overtone
- Frequency: 64 MHz - 125 MHz (3rd Overtone)
- Temperature Range: -10°C to +60°C (optionally -55°C to +125°C)
- Frequency Tolerance: ±50 ppm @+25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: varies by frequency, standard ESR ranges provided
- Shunt Capacitance: ~7.0 pF
- Load Capacitance: 18.0 pF
- Aging: 3 ppm first year
- Insulation Resistance: 500 MΩ @ 100VDC
- RoHS Compliant and Moisture Sensitive Level (MSL): Sensitive

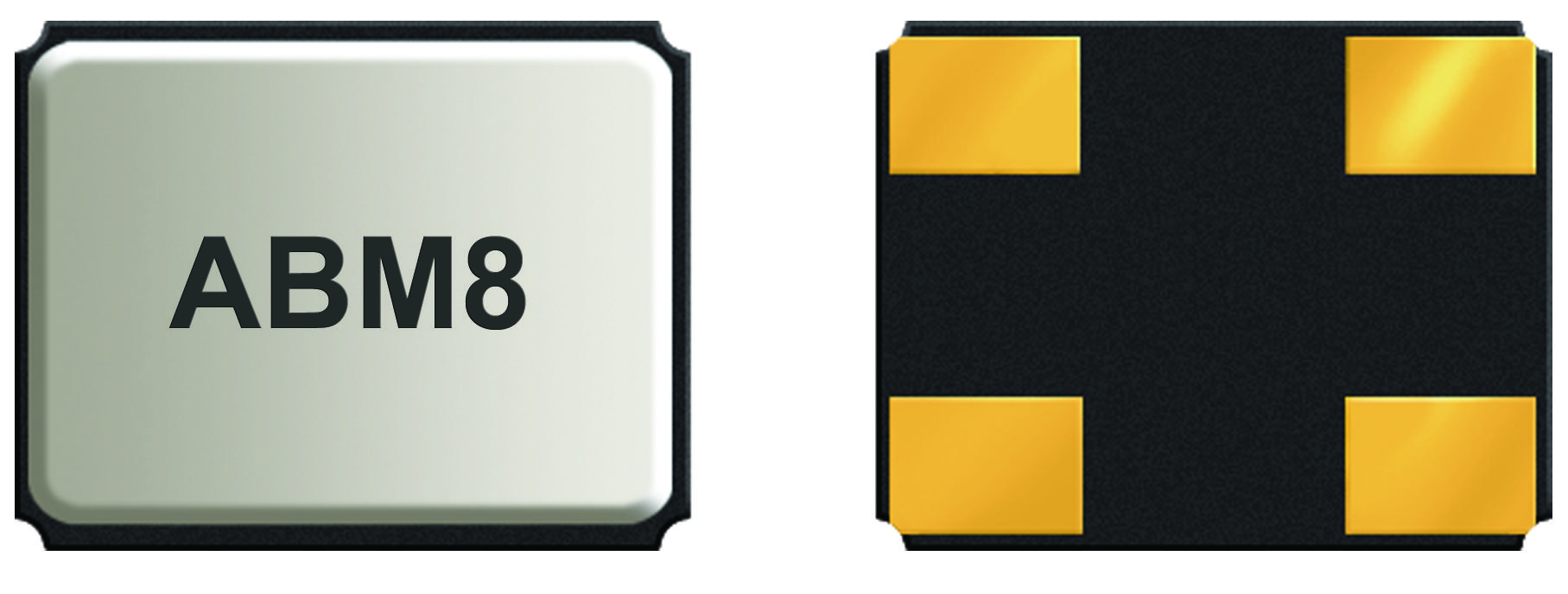

Buy the Buy Abracon Ultra Miniature Ceramic SMD Crystal Part Number ABM816000MHZ9B1UT Online
Order the Abracon Ceramic SMD Crystal ABM816000MHZ9B1UT today for your clock and timing applications. Its small 3.2x2.5x0.8mm size ensures easy integration into space-constrained designs, offering reliable frequency stability from 10 to 125 MHz. Designed to withstand temperature variations from -10°C to +60°C, it provides tight ±50 ppm tolerance and excellent year-round stability. Ideal for wireless devices, test equipment, and high-density electronics, this RoHS compliant crystal is manufactured to meet demanding industry standards and includes moisture resistance for longevity and performance.
Get Abracon ABM816000MHZ9B1UT today—compact high-reliability crystal for precise timing in small electronic devices.
Frequently Asked Questions
Where can I buy ABRACON ABM816000MHZ9B1UT?
You can click on the BUY or RFQ button to purchase ABM816000MHZ9B1UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM816000MHZ9B1UT?
You can download the ABM816000MHZ9B1UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM816000MHZ9B1UT?
ABRACON
