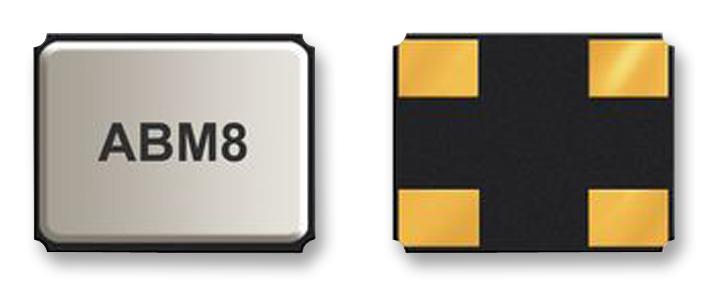

ABRACON ABM816000MHZD1XT Ceramic SMD Crystal

The ABRACON ABM8-16.000MHZ-D1X-T is a hermetically sealed ceramic SMD crystal, offering high reliability and stability. It's designed for use in various applications including modems, communication equipment, and test equipment. The crystal features a tight tolerance, is suitable for RoHS reflow, and is available in different packaging options. Abracon's products are not designed for life-dependent applications without written authorization.

ABM8-16.000MHZ-D1X-T ABRACON Ceramic SMD Crystal | myMectronic
View ABM816000MHZD1XTDatasheet [pdf]
Authorized Distributors
Source:Newark
Part No:ABM8-16.000MHZ-D1X-T
Stock:987
Inv Date:06-10-2026
Price: Unit price: $0.468
Buy/RFQ:
Source:DigiKey
Part No:ABM8-16.000MHZ-D1X-T
Stock:20535
Inv Date:06-10-2026
Price: Unit price: $0.25036
Buy/RFQ:
Source:Master Electronics
Part No:ABM8-16.000MHZ-D1X-T
Stock:3000
Inv Date:06-10-2026
Price: Unit price: $0.2444
Buy/RFQ:
Source:Onlinecomponents.com
Part No:ABM8-16.000MHZ-D1X-T
Stock:3000
Inv Date:06-10-2026
Price: Unit price: $0.2444
Buy/RFQ:
Source:Arrow EU
Part No:ABM8-16.000MHZ-D1X-T
Stock:1000
Inv Date:06-11-2026
Price: N/A
Buy/RFQ:
Source:Arrow Electronics Inc
Part No:ABM8-16.000MHZ-D1X-T
Stock:1000
Inv Date:06-11-2026
Price: N/A
Buy/RFQ:

ABRACON ABM816000MHZD1XT Ceramic SMD Crystal Specifications:

  • Frequency Range: 8.000 - 125.000 MHz
  • Operation Mode: Fundamental / 3rd Overtone
  • Operating Temperature: -10 to +60 ºC
  • Storage Temperature: -55 to +125 ºC
  • Frequency Tolerance: -50 to +50 ppm
  • Frequency Stability: -50 to +50 ppm
  • Equivalent Series Resistance: See Table 1
  • Shunt Capacitance: 3.0 pF
  • Load Capacitance: 18.0 pF
  • Drive Level: 10 - 100 µW
  • Aging: -2 to +2 ppm
  • Insulation Resistance: 500 MΩ
  • Moisture Sensitivity Level: N/A
  • Dimensions: 3.2 x 2.5 x 0.8 mm
  • Packaging: Bulk, Tape & Reel (1kpcs/reel), Tape & Reel (250pcs/reel), Tape & Reel (3kpcs/reel)

Buy the ABM8-16.000MHZ-D1X-T ABRACON Ceramic SMD Crystal | myMectronic

Purchase the ABRACON ABM8-16.000MHZ-D1X-T securely and reliably online.

Buy Now

Frequently Asked Questions

Where can I buy ABRACON ABM816000MHZD1XT?

You can click on the BUY or RFQ button to purchase ABM816000MHZD1XT from an authorized ABRACON distributor.

How do I troubleshoot issues or seek technical support for part ABM816000MHZD1XT?

You can download the ABM816000MHZD1XT datasheet or visit the ABRACON website for support.

Who is the manufacturer of ABM816000MHZD1XT?

ABRACON
