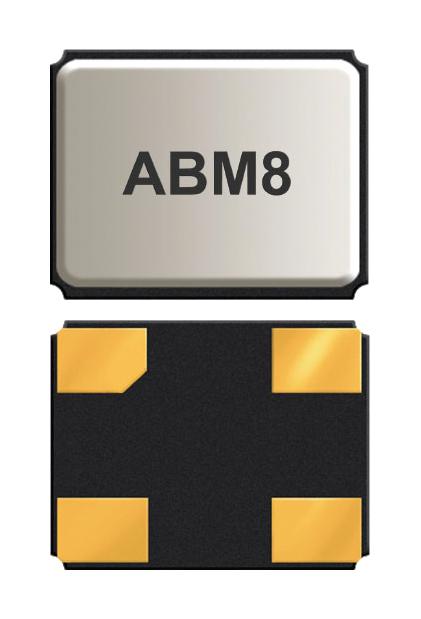

ABRACON ABM819200MHZ101UT Ceramic SMD Crystal
This ceramic surface-mount crystal features a compact 3.2x2.5x0.8mm hermetically sealed package, ensuring high reliability and stability for high-density and communication applications. It operates over a frequency range from 8MHz to 125MHz, offering various standard and custom frequencies with excellent frequency stability of ±50 to ±100 ppm. Suitable for RoHS-compliant reflow processes, the crystal supports fundamental and overtone modes, making it ideal for modems, wireless, and test equipment. Its rugged design ensures long-term aging resistance with low series resistance, making it perfect for precise, stable frequency control in demanding environments.
ABRACON ABM819200MHZ101UT Ceramic SMD Crystal Specifications:
- Package Size: 3.2x2.5x0.8mm
- Frequency Range: 8MHz - 125MHz
- Operation Modes: Fundamental, 3rd Overtone
- Frequency Stability: ±50 to ±100 ppm @25°C
- Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz
- Load Capacitance: 10pF or 15pF (typical)
- Series Resistance: See table 1
- Insulation Resistance: High, hermetically sealed package
- Moisture Sensitivity Level: N/A, hermetically sealed
- RoHS Compliant: Yes
- Reflow Compatibility: RoHS reflow processes supported
- Operating Temperature Range: -10°C to +60°C (Option E, B, and other ranges available)
- Application Areas: High-density electronics, modems, wireless, communication systems
- Reel Options: 1,000pcs/reel, 3,000pcs/reel, 250pcs/reel depending on option
- Certifications: Certified for reliability, RoHS compliant
Buy the Buy Abracon Ceramic SMD Crystal Part Number ABM819200MHZ101UT Online
Purchase the Abracon Ceramic SMD Crystal ABM819200MHZ101UT online today and enjoy reliable, high-precision frequency stabilization ideal for modern wireless, communication, and test equipment. This 3.2x2.5x0.8mm hermetically sealed package supports RoHS reflow, ensuring compatibility with automated assembly. Its wide frequency range from 8MHz to 125MHz, excellent stability of ±50 to ±100 ppm, and rugged construction make it suitable for demanding applications requiring long-term accuracy. Order now for fast delivery and dependable performance.
Order your Abracon Ceramic SMD Crystal ABM819200MHZ101UT today and ensure high reliability and precise frequency control in your high-density projects.
Frequently Asked Questions
Where can I buy ABRACON ABM819200MHZ101UT?
You can click on the BUY or RFQ button to purchase ABM819200MHZ101UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM819200MHZ101UT?
You can download the ABM819200MHZ101UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM819200MHZ101UT?
ABRACON
