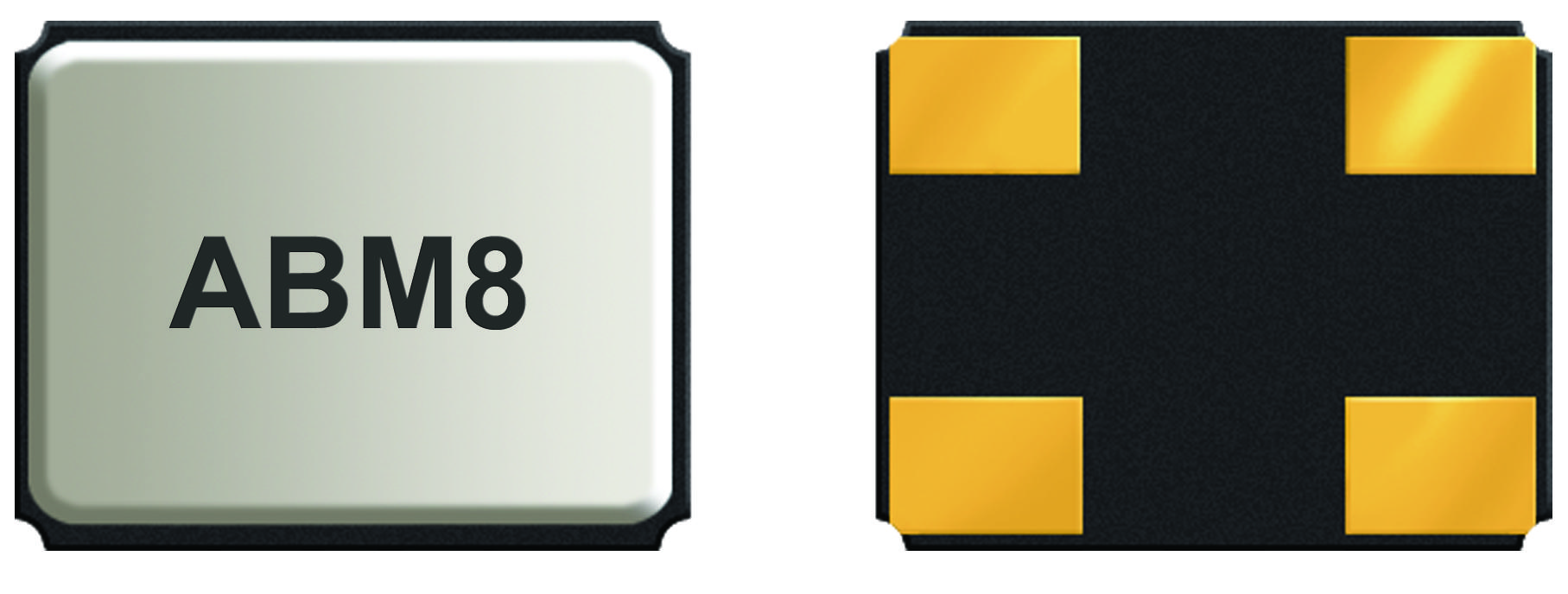

ABRACON ABM820000MHZ12D1XT Miniature Crystal
This ultra miniature ceramic SMD crystal is hermetically sealed and compliant with RoHS standards, making it suitable for high-density, low-height applications. It operates within a frequency range of 10 to 125 MHz, with fundamental and overtone modes. Designed for reliable use in modems, communication, and test equipment, it features tight tolerance, stability, and moisture sensitivity. Its compact 3.2x2.5x0.8mm package supports reflow soldering and offers temperature stability from -10°C to +60°C, ensuring precision in frequency generation for modern electronic devices.
ABRACON ABM820000MHZ12D1XT Miniature Crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm
- Frequency Range: 10–125 MHz
- Operation Mode: Fundamental, 3rd Overtone
- Temperature Range: -10°C to +60°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm (@25°C)
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: 30–80 ohms (standard ESR ranges)
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Drive Level: 10–100 μW
- Aging: 3 ppm per year
- RoHS compliant and hermetically sealed packaging
- Suitable for reflow soldering, low-profile design, moisture sensitive, high reliability
Buy the Abrazon Series Crystal: ABM820000MHZ12D1XT
Order the Abracon Miniature Crystal today for the most reliable frequency generation in your electronic projects. Its compact design, hermetic sealing, and RoHS compliance make it ideal for high-density, low-profile applications like modems, communication devices, and test equipment. With operating temperatures from -10°C to +60°C, low power consumption, and tight tolerance, this crystal ensures optimal performance and stability. Buy online now for fast delivery and ensure your projects stay synchronized with precise, stable frequencies, backed by quality assurance.
Get Abracon ABM820000MHZ12D1XT today—built for precision and long-lasting durability in timing applications.
Frequently Asked Questions
Where can I buy ABRACON ABM820000MHZ12D1XT?
You can click on the BUY or RFQ button to purchase ABM820000MHZ12D1XT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM820000MHZ12D1XT?
You can download the ABM820000MHZ12D1XT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM820000MHZ12D1XT?
ABRACON
