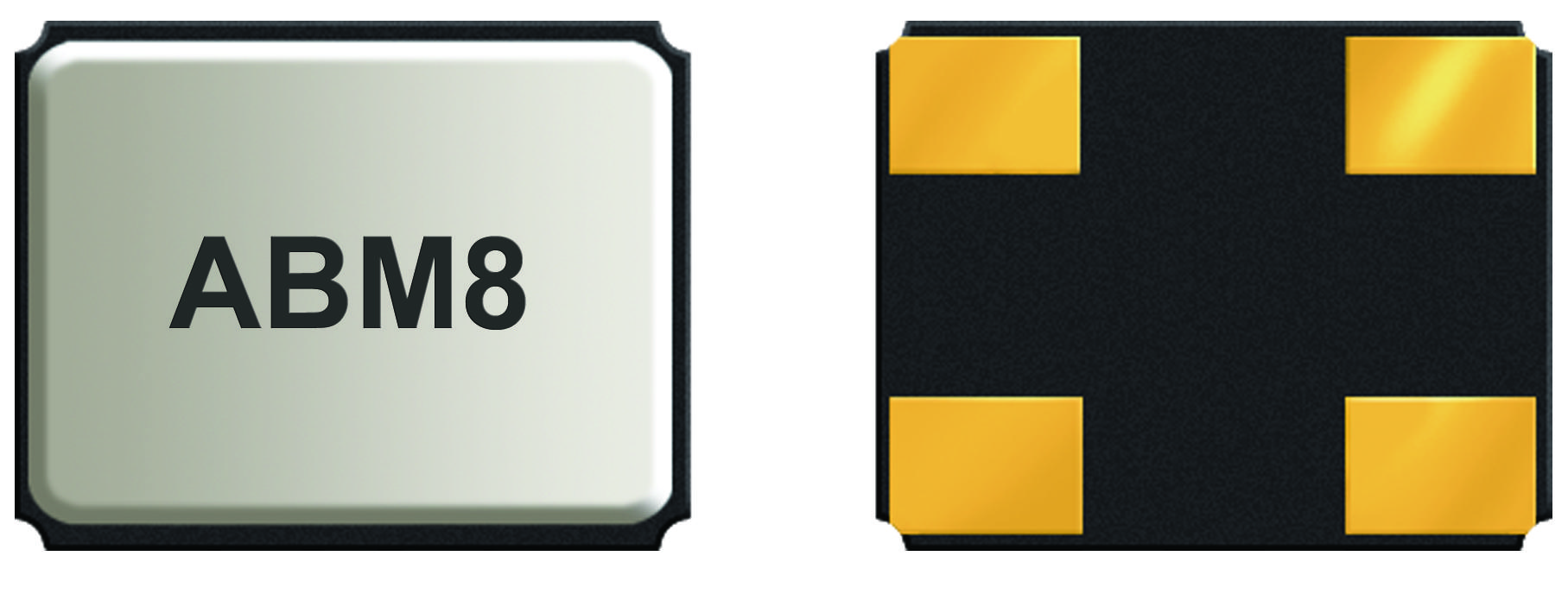

ABRACON ABM827000MHZ20B1UT Ceramic SMD Crystal
This ultra miniature ceramic SMD crystal is Hermetically Sealed, RoHS compliant, and ideal for high-density, space-constrained electronic timing applications. Measuring 3.2x2.5x0.8mm, it offers excellent stability, tight frequency tolerance, and low equivalent series resistance. Suitable for fundamental and third overtone modes, it operates within -10°C to +60°C or optional temperature ranges. Its sealed package ensures high reliability in demanding environments, making it perfect for modems, communication, and test equipment requiring precise frequency control.
ABRACON ABM827000MHZ20B1UT Ceramic SMD Crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm
- Frequency Range: 10.000 to 125.000 MHz, fundamental to third overtone
- Operation Mode: Standard, fundamental, and third overtone
- Operating Temperature: -10°C to +60°C (optional ranges available: 0°C to 185°C, 20°C to 170°C, etc.)
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm, at +25°C
- Frequency Stability: ±50 ppm over operating temperature
- Equivalent Series Resistance: 30kΩ to 80kΩ depending on frequency mode
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Drive Level: 10 to 100 μW
- Aging: ±3 ppm per year
- Insulation Resistance: 500 MΩ at 100V dc
- RoHS compliant, hermetically sealed packaging ensures high reliability in critical applications.
Buy the Abracon ABM827000MHZ20B1UT – Reliable Crystal for Industrial Applications
Discover the high-quality ceramic SMD crystal ideal for precise timing in communication, test, and industrial electronics. Measuring 3.2x2.5x0.8mm, this hermetically sealed, RoHS-compliant component provides reliable frequency control across multiple modes and temperature ranges. Its compact size makes it suitable for space-constrained devices, offering tight tolerance, excellent stability, and low ESR for maximum performance. Enhance your project’s reliability by ordering this essential component online now and benefit from fast delivery and trusted quality assurance.
Order your Abracon Series ABM827000MHZ20B1UT ultra miniature ceramic SMD crystal today and ensure precise frequency stability for your critical electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABM827000MHZ20B1UT?
You can click on the BUY or RFQ button to purchase ABM827000MHZ20B1UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM827000MHZ20B1UT?
You can download the ABM827000MHZ20B1UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM827000MHZ20B1UT?
ABRACON
