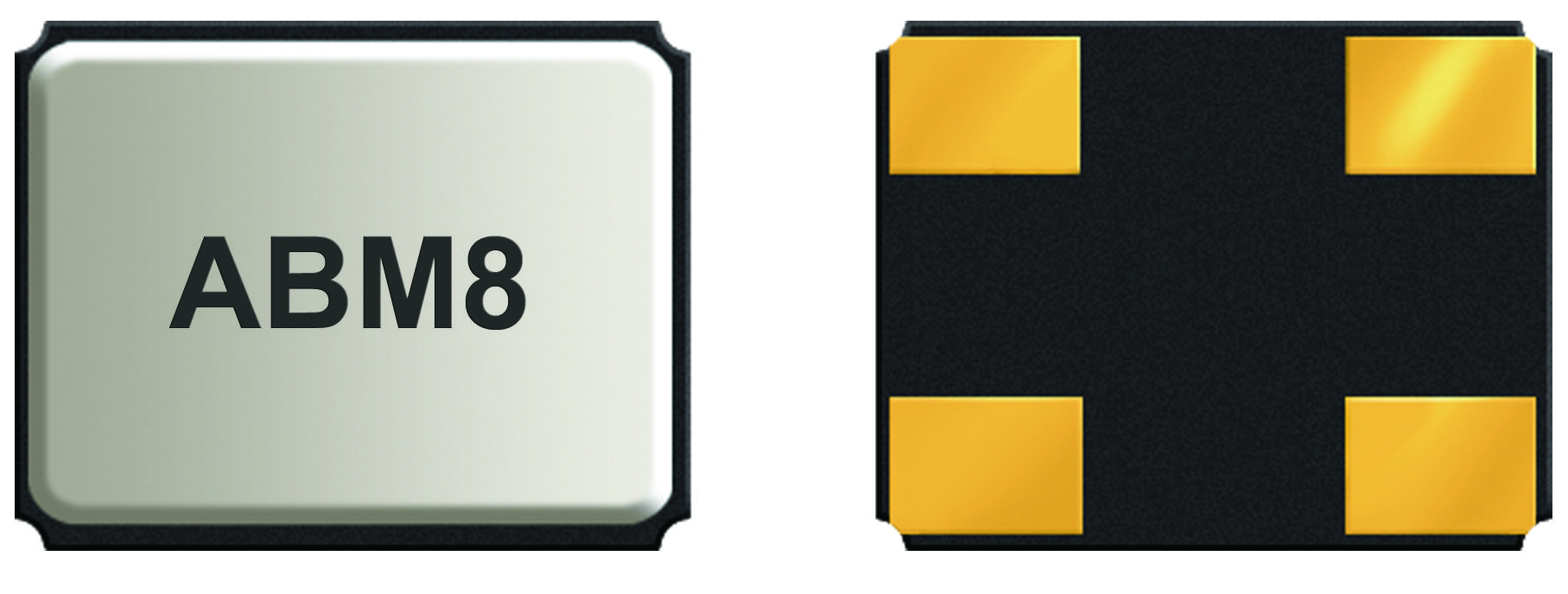

ABRACON ABM827000MHZD4YT Ceramic SMD Crystal
This ultra miniature ceramic SMD crystal is hermetically sealed and RoHS compliant, ideal for high-density, low-height applications in communication, modems, and test equipment. Measuring 3.2x2.5x0.8mm, it offers fundamental and overtone modes ranging from 10MHz to 125MHz with tight frequency tolerance and stability. Its sealed packaging ensures high reliability, suitable for RoHS reflow processes and moisture-sensitive environments, making it perfect for thin, high-reliability electronics requiring precise timing and minimal space.
ABRACON ABM827000MHZD4YT Ceramic SMD Crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm (0.126x0.098x0.031 inches)
- Frequency Range: 10.000 MHz to 125.000 MHz
- Operation Mode: Fundamental and 3rd Overtone
- Temperature Range: -10°C to +60°C, Storage -55°C to +125°C
- Frequency Tolerance: ±50 ppm @+25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: 30Ω to 80Ω depending on frequency
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Insulation Resistance: 500 MΩ @ 100V DC
- Sealed hermetically for high reliability
- Suitable for RoHS reflow and moisture-sensitive environments
- Available in tape and reel packaging for automated assembly
Buy the Buy Abracon Ultra Miniature Ceramic SMD Crystal Part Number ABM827000MHZD4YT Online
Discover the high-performance ceramic SMD crystal available online designed for precise timing in electronic devices. Its compact size of 3.2x2.5x0.8mm makes it ideal for space-constrained applications such as communication equipment, modems, and test devices. Hermetically sealed to resist moisture and environmental factors, this RoHS-compliant crystal offers excellent stability and tight frequency tolerance between 10MHz and 125MHz. Suitable for various industrial and high-density electronics, it ensures long-term reliability, making it the perfect choice for engineers and technicians requiring consistent accuracy in their projects.
Order your Abracon Series ABM827000MHZD4YT ceramic SMD crystal today and enhance your electronics with reliable, compact timing solutions.
Frequently Asked Questions
Where can I buy ABRACON ABM827000MHZD4YT?
You can click on the BUY or RFQ button to purchase ABM827000MHZD4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM827000MHZD4YT?
You can download the ABM827000MHZD4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM827000MHZD4YT?
ABRACON
