ABRACON ABM827120MHZB4T Miniature SMD Crystal
The ultra miniature ceramic SMD crystal is hermetically sealed, RoHS compliant, and ideal for high-density, low-height applications. Measuring 3.2x2.5x0.8mm, it offers stable frequency operation from 10 MHz to 125 MHz, suitable for modem, communication, and test equipment. Designed with a sealed package for reliability, it supports fundamental and third overtone modes with tight tolerance and stability. Its small size makes it perfect for thin equipment, with options for reflow soldering and moisture sensitivity. Various frequency and temperature options are available for diverse industrial and communication applications.
ABRACON ABM827120MHZB4T Miniature SMD Crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm
- Frequency Range: 10 MHz to 125 MHz
- Operation Mode: Fundamental, 3rd Overtone
- Fundamental Frequencies: 10, 11, 12, 15, 16, 19.999, 20, 29.999, 40, 66, 66.6666, 75, 80, 98.304, 100, 125MHz
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over temperature
- Temperature Range: -10°C to +60°C (standard), options up to +125°C
- Equivalent Series Resistance (ESR): Standard ESR values listed
- Shunt Capacitance: approximately 7.0 pF
- Drive Level: 10 to 100 µW
- Storage Temperature: -55°C to +125°C
- RoHS Compliant, hermetically sealed package for reliability
- Suitable for reflow soldering, moisture sensitive, thin profile applications

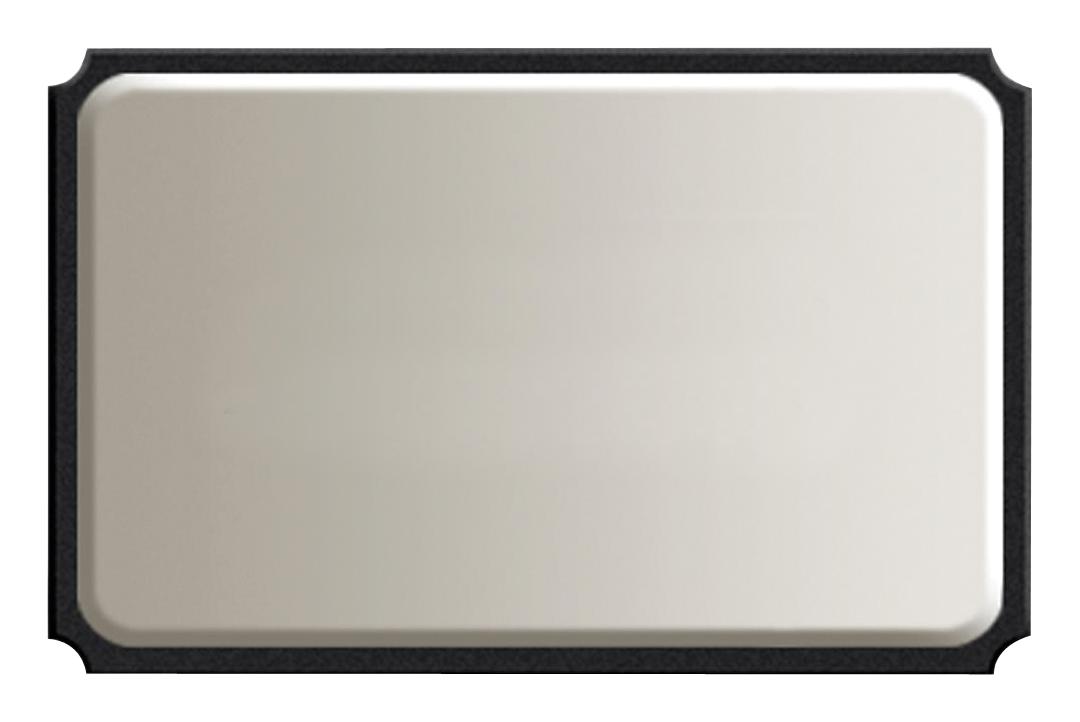

Buy the Buy Abracon Ultra Miniature Ceramic SMD Crystal Part Number ABM827120MHZB4T Online
Purchase the Abracon ABM827120MHZB4T ultra miniature ceramic SMD crystal online today. This hermetically sealed, RoHS-compliant component offers precise frequency stability from 10 MHz to 125 MHz. Its compact size of 3.2x2.5x0.8mm makes it ideal for thin, high-density electronic equipment. Designed for reliable operation in various industrial, communication, and test applications, it supports reflow soldering and moisture sensitivity. Secure yours now for dependable, high-performance frequency control in your advanced electronic projects.
Get Abracon ABM827120MHZB4T today—built for high reliability and precise frequency stability in compact electronic designs.
Frequently Asked Questions
Where can I buy ABRACON ABM827120MHZB4T?
You can click on the BUY or RFQ button to purchase ABM827120MHZB4T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM827120MHZB4T?
You can download the ABM827120MHZB4T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM827120MHZB4T?
ABRACON
