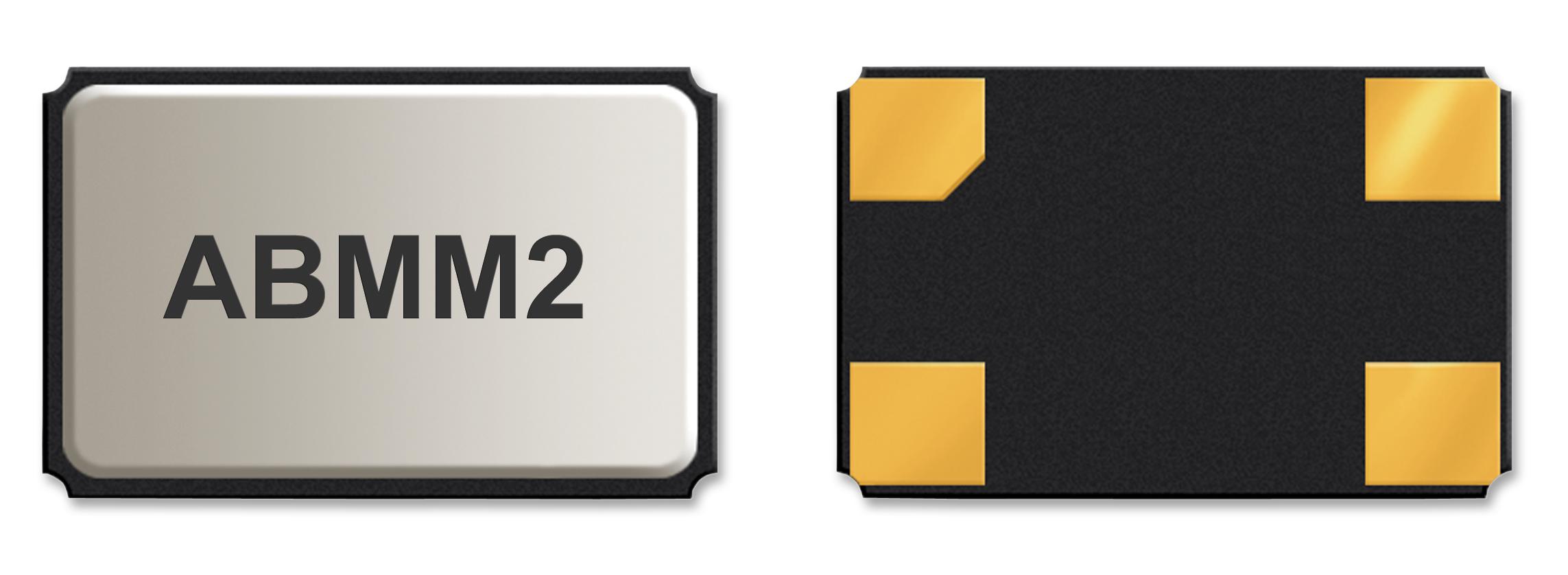

ABRACON ABMM227000MHZE2T Quartz Crystal
The ABMM227000MHZE2T is a low-profile, surface-mount quartz crystal designed for reliable performance in industrial and communication applications. Measuring 6.0x 3.6x 1.2 mm, it features RoHS compliance, high stability, and tight tolerance suitable for RoHS reflow processes. Its ceramic sealed package ensures high reliability, making it ideal for microprocessors, modems, test equipment, and PCMCIA devices. Operating within -10°C to +60°C, it provides stable frequency operation from fundamental to overtone standards, with a voltage rating of 100/500 V. Its compact form factor and sealed design make it suitable for space-constrained electronics requiring precision frequency control.
ABRACON ABMM227000MHZE2T Quartz Crystal Specifications:
- Dimensions: 6.0x 3.6x 1.2 mm
- Frequency Range: 7.3728 MHz to 110 MHz (fundamental and overtone standards)
- Operation Mode: Fundamental, 3rd overtone, 5th overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Frequency Tolerance: ±20 ppm @+25°C
- Frequency Stability: 20 ppm over temperature range
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF (standard), adjustable
- Drive Level: 100 to 500 µW
- Equivalent Series Resistance: Based on ESR table
- Insulation Resistance: 500 MΩ @ 100 VDC
- RoHS/RoHS II Compliant
- Reel Type: Tape and reel with 250 or 1000 pieces
- Sealed ceramic package, tightly tolerant, high reliability
- Suitable for RoHS reflow soldering, PCMCIA, communication, and test equipment
- Temperature Tolerance: ±15 ppm to ±50 ppm depending on options
- Lead Pitch: 1.8 mm, recommended land pattern for mounting
- Pin 2 and 4 connected to metal lid for grounding
Buy the ABRACON Series ABMM Quartz Crystal Oscillator: ABMM227000MHZE2T
Purchase the Abracon quartz crystal ABMM227000MHZE2T online today to ensure your electronic devices operate with high precision and reliability. Its compact size and sealed ceramic package make it perfect for space-constrained applications like microprocessors, modems, and test equipment. RoHS compliant and suitable for RoHS reflow soldering, this crystal offers tight tolerance and stable frequency performance over temperature ranges from -10°C to +60°C. Improve your project’s stability and reliability by ordering this high-quality, compact crystal directly from our online store now.
Get Abracon quartz crystal ABMM227000MHZE2T today—designed for precision, space-saving, and high reliability in demanding electronic environments.
Frequently Asked Questions
Where can I buy ABRACON ABMM227000MHZE2T?
You can click on the BUY or RFQ button to purchase ABMM227000MHZE2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABMM227000MHZE2T?
You can download the ABMM227000MHZE2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABMM227000MHZE2T?
ABRACON
