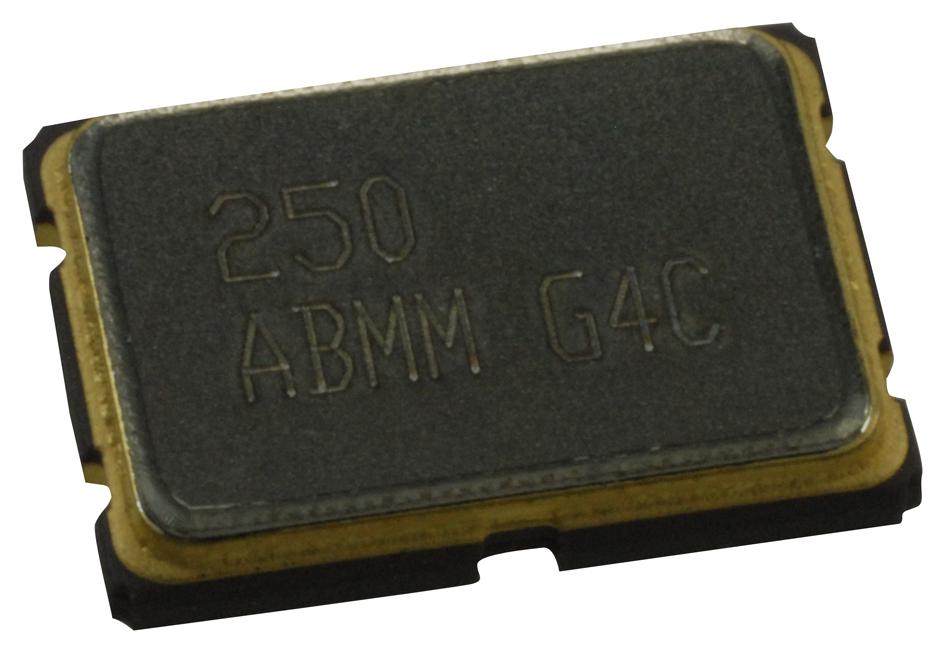

ABRACON ABMM25000MHZB2T Crystal Oscillator
The ABMM-25.000MHz-B2-T is a 7 x 5 x 1.3 mm ceramic surface-mount microprocessor crystal oscillator with a frequency of 25 MHz and a 20 ppm tolerance. It features an AT-strip cut design for improved stability and is suitable for use in computers, modems, microprocessors, PCMCIA cards, communication, and test equipment. This crystal is compatible with reflow soldering processes. It operates in a fundamental mode with a maximum series resistance of 50Ω, a maximum shunt capacitance of 7 pF, a maximum drive level of 500 µW, and a minimum insulation resistance of 500 MΩ at 100 VDC. The device is ideal for clock and timing applications, computer and peripheral devices, communication and networking equipment, as well as testing and measurement applications. Please note that due to high market demand, lead times may be extended, and delivery dates can fluctuate. The product is exempt from discounts.
ABRACON ABMM25000MHZB2T Crystal Oscillator Specifications:
- Dimensions: 7.0 x 5.0 x 1.3 mm
- Frequency: 25 MHz
- Tolerance: ±20 ppm at +25°C
- Operation Mode: Fundamental
- Series Resistance: Max 50Ω
- Shunt Capacitance: Max 7 pF
- Drive Level: Max 500 µW
- Insulation Resistance: Min 500 MΩ at 100 VDC
- Temperature Range: -40°C to +85°C
- RoHS Compliant
- Suitable for RoHS reflow soldering
- AT-strip cut for stability
- Recommended land pattern provided
- Package Size: 7.0 x 5.0 mm, height 1.3 mm
Buy the Buy Abracon Ceramic Surface Mount Crystal Oscillator Part Number ABMM25000MHZB2T Online
Discover the Abracon ceramic surface-mount crystal oscillator, model ABMM-25.000MHz-B2-T. Compact size 7 x 5 x 1.3 mm, designed for precise timing in computers, modems, and communication equipment. Compatible with reflow soldering and engineered for high stability with an AT-strip cut. Offers 20 ppm frequency tolerance, operating in fundamental mode with low resistance, high insulation resistance, and low drive level. Ideal for clock, peripheral devices, and testing applications, providing dependable performance for your electronics projects. Buy online today and enhance your circuit reliability.
Order your Abracon Series ABMM 25 MHz crystal today and ensure your timing circuits operate with high precision and reliability in your projects.
Frequently Asked Questions
Where can I buy ABRACON ABMM25000MHZB2T?
You can click on the BUY or RFQ button to purchase ABMM25000MHZB2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABMM25000MHZB2T?
You can download the ABMM25000MHZB2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABMM25000MHZB2T?
ABRACON
