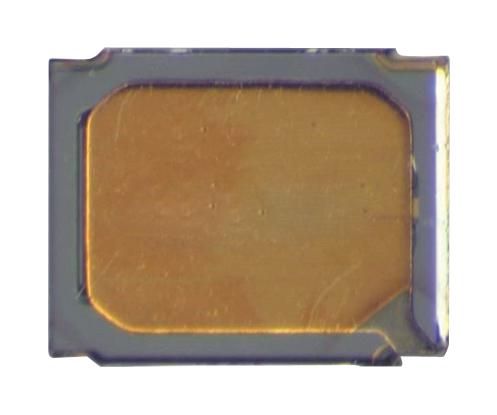

ABRACON ABS04W32768KHZ4J2T5 Clock Crystal
This component is designed for clock and timing applications, ensuring precise frequency control in electronic circuits. It features a minimal profile suitable for space-constrained IoT, Wearables, and Wireless devices. Operating at 32.768kHz, it offers low ESR and optimized stability over a wide temperature range of -40°C to +85°C. Its small form factor of 1.20x1.00x0.35mm and RoHS compliance make it ideal for ultra-low power applications, including BLE, M2M, NFC, and ISM band devices, providing reliable and accurate oscillation performance.
ABRACON ABS04W32768KHZ4J2T5 Clock Crystal Specifications:
- Frequency: 32.768 kHz
- Operation Mode: Flexural Mode (Tuning Fork)
- Dimensions: 1.20 x 1.00 x 0.35mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance @ +25°C: -10 to +10 ppm
- Load Capacitance (CL): 40 pF
- Equivalent Series Resistance (ESR): <75 kΩ @ 25°C + 3°C
- Shunt Capacitance (C0): 15 pF
- Motional Capacitance (C1): 6.50 fF
- Motional Inductance (L1): 3,800,000 μH
- Drive Level: 0.1 μW
- Q value: 8,000 - 10,000
- Aging: ±3 ppm (first year), ±15 ppm (10 years)
- RoHS Compliant
- Reflow Temperature: 260°C peak
- Packaging: Tape and Reel (5,000 pcs/reel)
Buy the Abracon ABS04W32768KHZ4J2T5 – Reliable 32kHz Timer Crystal for Industrial Applications
Purchase the Abracon Series ABS04W32768KHZ4J2T5 32.768kHz SMD crystal online today for your IoT, Wearables, and wireless projects. Its compact size, low ESR, and precise frequency, combined with broad temperature stability, make it ideal for space-constrained designs. With RoHS compliance and reliable performance, you're ensured of quality and consistency in your timing applications. Enhance your device’s accuracy and efficiency now by ordering online—fast delivery and dedicated support await your purchase!
Order your Abracon Series ABS04W32768KHZ4J2T5 32.768kHz SMD Crystal today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy ABRACON ABS04W32768KHZ4J2T5?
You can click on the BUY or RFQ button to purchase ABS04W32768KHZ4J2T5 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABS04W32768KHZ4J2T5?
You can download the ABS04W32768KHZ4J2T5 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABS04W32768KHZ4J2T5?
ABRACON
