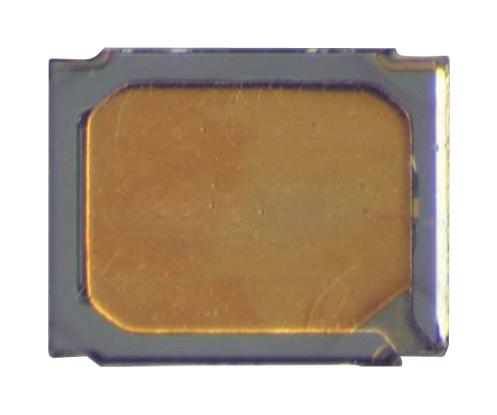

ABRACON ABS04W32768KHZ6J2T5 32.768kHz IoT Crystal
This clock and timing component offers precise frequency generation and synchronization for electronic circuits, making it ideal for communication systems, embedded devices, and timing modules. Compact and low-profile, it fits space-constrained IoT, wearables, and wireless applications. Optimized for low ESR and power savings, it features a 32.768kHz frequency, stable operation over -40°C to +85°C, and RoHS compliance. Suitable for M2M, Bluetooth, NFC, and ISM band devices, its small size and performance make it perfect for modern low-power electronics needing accurate clock signals.
ABRACON ABS04W32768KHZ6J2T5 32.768kHz IoT Crystal Specifications:
- Frequency: 32.768 kHz
- Operation Mode: Flexural Mode (Tuning Fork)
- Dimensions: 1.20 x 1.00 x 0.35mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance @ +25°C: -10 to +10 ppm (See options)
- Reflow Temperature: 260°C peak maximum
- Load Capacitance: 40 pF (see options)
- Equivalent Series Resistance (ESR): <75 kΩ over -40°C to +85°C
- Shunt Capacitance (C0): 15.2 pF
- Motional Capacitance (C1): 6.50 fF
- Motional Inductance (L1): 3.8 M H
- Drive Level: 0.1-0.5 μW
- Q value: 8,000 to 10,000
- Aging (@ +25°C, 1st Year): ±3 ppm
- Insulation Resistance: 500 MΩ @ 100 V DC
- RoHS/RoHS II Compliant
- MSL: Not Applicable
Buy the Buy Abracon 32.768kHz SMD Crystal Part Number ABS04W32768KHZ6J2T5 Online
Purchase the Abracon 32.768kHz IoT crystal online today and ensure your electronic devices achieve accurate timing and synchronization. Its small form factor makes it perfect for space-constrained applications like wearables, wireless modules, and IoT devices. Engineered for stability over -40°C to +85°C, it offers low ESR and power-efficient operation, providing dependable performance in M2M, NFC, Bluetooth, and ISM band applications. Enjoy fast delivery and secure online shopping for this high-performance crystal, optimizing your product’s timing accuracy and reliability.
Order your Abracon SeriesABS04W32768KHZ6J2T5 ultra-compact SMD crystal today and enhance your IoT, wearable, and wireless modules with precise and reliable timing.
