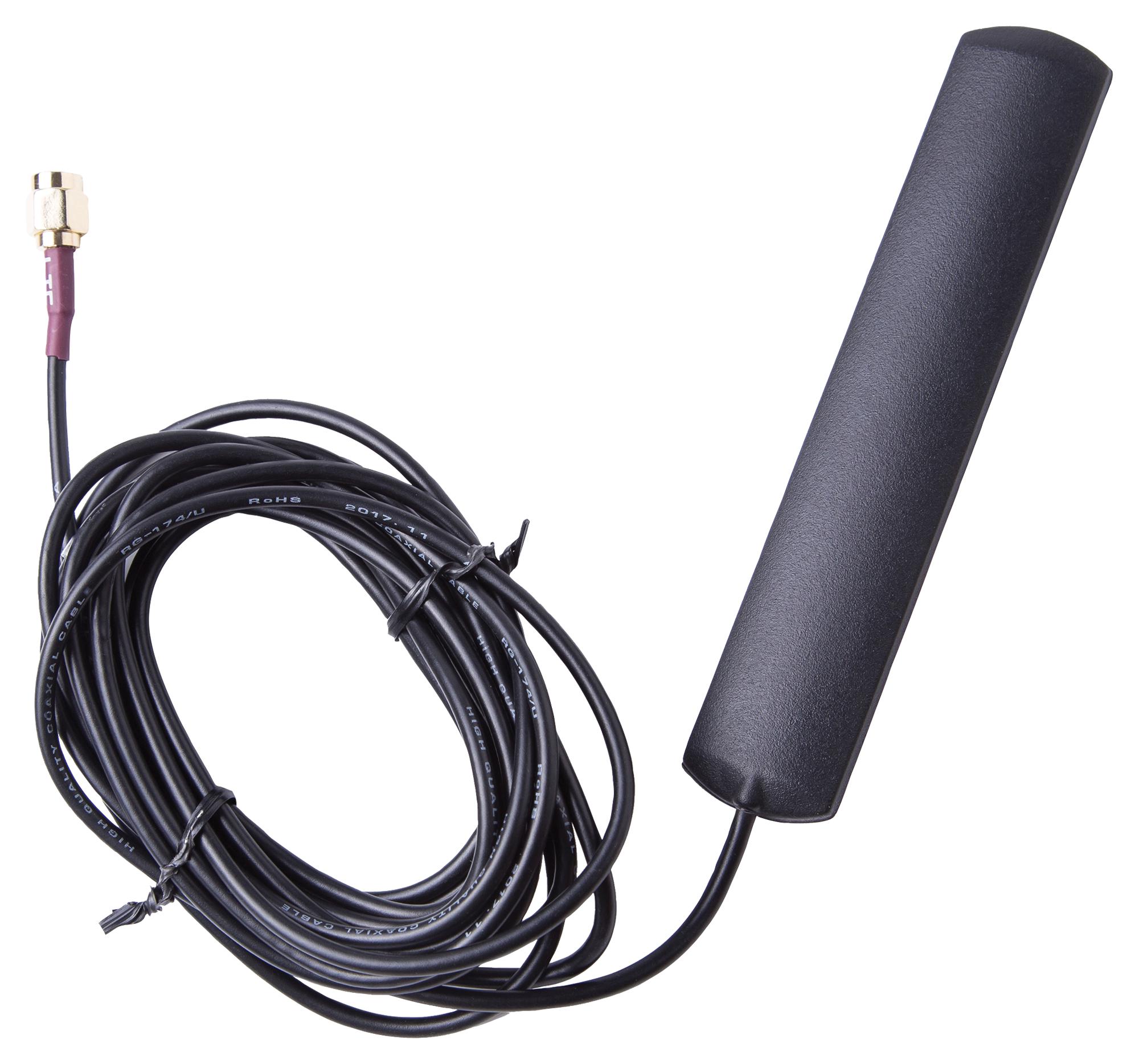

ABRACON AEACCA115021S698 Cellular Blade Antenna
This blade antenna supports multiple cellular bands including LTE 700, GSM 850, GSM 900, DCS, PCS, UMTS, and LTE 2600. It features a 3-meter RG174 RF cable with a Fakra connector, an ABS radome for durability, and compact dimensions of 115.6 x 21.7 x 5.8 mm. Suitable for wireless and system monitoring applications, it boasts a low profile design, adhesive mount, RoHS compliance, and a gain of 2dBi. Its efficient design ensures strong signal reception across various frequencies, making it ideal for M2M, IoT, and remote monitoring solutions.
ABRACON AEACCA115021S698 Cellular Blade Antenna Specifications:
- Dimensions: 115.6 x 21.7 x 5.8 mm
- Frequency Range: 700 MHz to 2690 MHz
- Peak Gain: 2.12 dBi at 700 MHz, 1.61 dBi at 1850 MHz, -0.89 dBi at 2170 MHz
- Efficiency: 55% to 59%
- Connector Type: Fakra/SMA (or other options available)
- Cable Length: 3.00 meters RG174 RF cable
- Radome Material: ABS
- Mounting: Adhesive mount
- RoHS/RoHS II Compliant
- Environmental: MSL = N/A
- Polarization: Linear
- VSWR: <2.0
- Application: LTE, GSM, DCS, PCS, UMTS, M2M
- Physical Features: Low profile, compact design, external antenna
Buy the Buy Abracon 4G LTE Cellular Band Blade Antenna Part Number AEACCA115021-S698 Online
Purchase the reliable Abracon cellular blade antenna online today and ensure your wireless projects achieve optimal performance. Its multi-band support includes LTE, GSM, DCS, PCS, UMTS, and LTE 2600, making it versatile for various applications. With a compact size of 115.6 x 21.7 x 5.8 mm, low VSWR of less than 2.0, and a gain of 2dBi, it delivers strong and consistent signals. The 3-meter RG174 RF cable with Fakra connector, durable ABS radome, and adhesive mount simplify installation and enhance durability, making it perfect for M2M, IoT, and remote monitoring solutions.
Order your Abracon SeriesAEACCA115021-S698 blade antenna today and enhance your wireless communication system with reliable multi-band support and durable design.
Frequently Asked Questions
Where can I buy ABRACON AEACCA115021S698?
You can click on the BUY or RFQ button to purchase AEACCA115021S698 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AEACCA115021S698?
You can download the AEACCA115021S698 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AEACCA115021S698?
ABRACON
