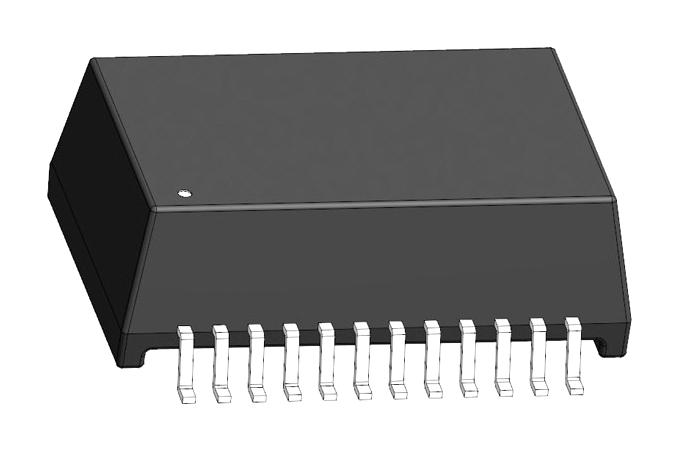

ABRACON ALAN3100013J61DT Ethernet Power Module
The POE++ 10/100/1000 BASE-T Single Port SMD LAN Transformer Module is designed for high-speed Ethernet applications, supporting IEEE 802.3bt standards and delivering power up to 90-100 Watts. Its compact dimensions of 18.3 x 12.4 x 6.4mm, RoHS compliance, and MSL=1 make it suitable for industrial, surveillance, and networking devices. It features low insertion loss, EMI suppression, and common mode noise rejection, ensuring reliable data transmission and power delivery in various networking and automation systems, including IP cameras, switches, routers, and industrial computers.
ABRACON ALAN3100013J61DT Ethernet Power Module Specifications:
- Dimensions: 18.3 x 12.4 x 6.4mm
- RoHS/RoHS II Compliant
- MSL= 1
- Supports IEEE 802.3bt Type-3 / POE+
- Power Delivery: 90 - 100 Watts per port
- Current Capability: up to 600 mA per pair
- Operating Temperature Range: -40°C to +125°C
- Insertion Loss: Low at 100kHz, 0.1V, 8mA DC Bias
- Capacitance: 350 PF Max at 100kHz
- Contact Material: Copper alloy
- Mounting: SMD, 24-pin
- Mechanical Dimensions: 18.3 x 12.4 x 6.4mm
- Reel Packaging: 400 pieces per reel, total weight 11.5kg
- Reflow Profile: Preheat 200°C for 60-120s, Peak at 245.4°C for 20-40s
Buy the Abracon ALAN310001 – Reliable Ethernet Power Modules for Industrial Applications
Enhance your networking setup with the Abracon LAN Transformer Module offering IEEE 802.3bt support and up to 100 Watts power delivery. Its compact design ensures easy integration into industrial computers, IP cameras, and switches. Built with high-quality materials, this module provides low insertion loss, EMI suppression, and high noise rejection for dependable data transmission and power over Ethernet. Optimize your systems today with this robust, RoHS-compliant component and ensure seamless performance in demanding environments.
Buy Abracon ALAN310001 now and experience unmatched reliability and high power delivery for industrial, surveillance, and networking solutions.
Frequently Asked Questions
Where can I buy ABRACON ALAN3100013J61DT?
You can click on the BUY or RFQ button to purchase ALAN3100013J61DT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ALAN3100013J61DT?
You can download the ALAN3100013J61DT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ALAN3100013J61DT?
ABRACON
