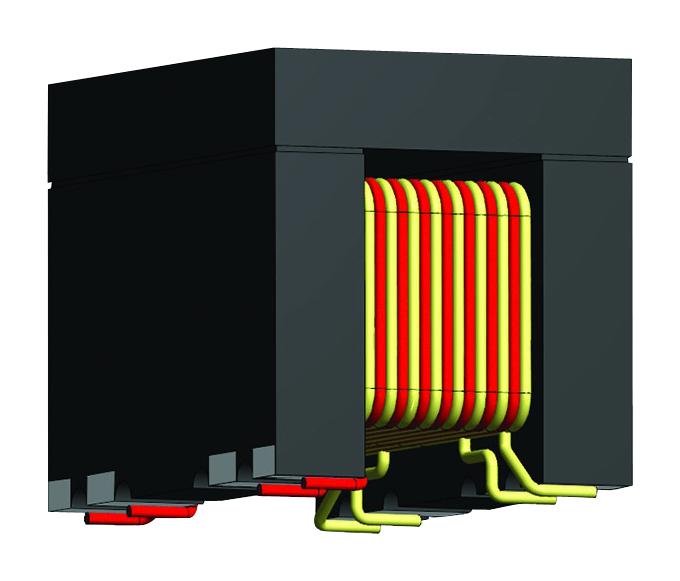

ABRACON ALANC10001CDB3DT LAN Transformer
The ALANC10001 is a compact 10/100/1000 BASE-T LAN transformer designed for high-speed Ethernet applications. It meets IEEE standards 802.3u and 802.3ab, ensuring compatibility with 10 BASE-T, 100 BASE-TX, and 1000 BASE-T networks. Its RoHS compliance and robust operating temperature range from -40°C to +85°C make it suitable for industrial and networking environments. With a small form factor of 4.5 x 3.2 x 3.5 mm, it features symmetrical windings, low insertion loss, and reliable performance suitable for servers, switches, routers, IP cameras, and other communication systems.
ABRACON ALANC10001CDB3DT LAN Transformer Specifications:
- Dimensions: 4.5 x 3.2 x 3.5 mm
- RoHS/RoHS II Compliant
- MSL=1
- Frequency Range: 0.5-100 MHz
- Insertion Loss: Max 1.5 dB at 0.5-100 MHz
- Return Loss: Min 16 dB at 60 MHz, 12 dB at 80 MHz, 10 dB at 100 MHz
- Inductance: 200 uH (Min), 0.5 uH (Max)
- Capacitance: Max 35 pF
- Operating Temperature: -40°C to +85°C
- Voltage Rating: 1.5 Vrms
- Package: Tape and Reel, 2,200 pcs/reel
- Certifications: RoHS compliant
- Reflow Profile: Preheat to 150°C-200°C, peak 245°C, max 260°C for 5 sec
Buy the Abracon Series LAN Transformer: ALANC10001
Secure your network's performance by ordering the Abracon LAN Transformer ALANC10001 online today. Designed for high-speed Ethernet interfaces, it complies with IEEE standards and features a small compact design suitable for industrial, commercial, and data communication applications. Its RoHS certification guarantees environmental safety, while its operating temperature range of -40°C to +85°C ensures durability in harsh conditions. Easy to integrate, this transformer enhances signal integrity, reduces interference, and provides dependable connectivity for servers, switches, routers, and IP surveillance systems. Buy online now for fast delivery and quality assurance.
Order your Abracon Series LAN transformer ALANC10001 today and ensure reliable, high-speed Ethernet communication for your networking needs.
Frequently Asked Questions
Where can I buy ABRACON ALANC10001CDB3DT?
You can click on the BUY or RFQ button to purchase ALANC10001CDB3DT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ALANC10001CDB3DT?
You can download the ALANC10001CDB3DT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ALANC10001CDB3DT?
ABRACON
