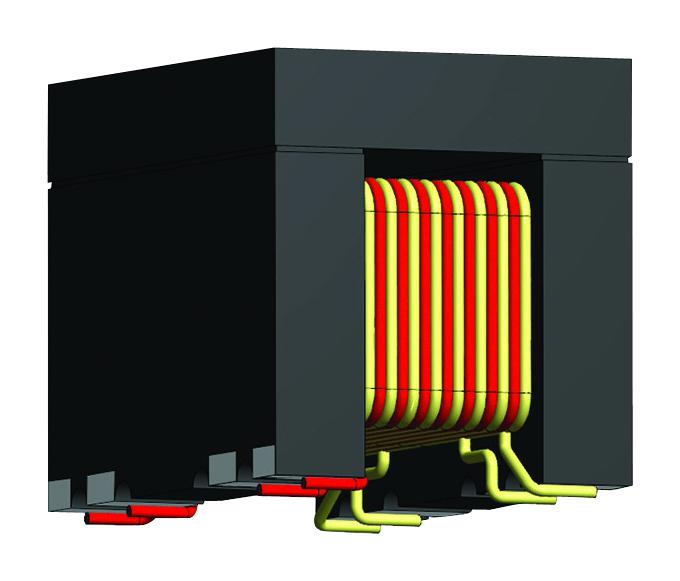

ABRACON ALANC10001CDB3ET Ethernet Transformer
The ALANC10001 is a compact, RoHS-compliant LAN transformer designed for 10/100/1000 BASE-T Ethernet applications. It features uniform transformer windings, supports IEEE standards 802.3u and 802.3ab, and is suitable for servers, switches, routers, IP cameras, industrial computers, and automation systems. With a small size of 4.5 x 3.2 x 3.5 mm, it offers low insertion loss and high return loss at various frequencies, ensuring reliable gigabit data transmission. Its robust construction supports operating temperatures from -40°C to +85°C, making it ideal for industrial environments.
ABRACON ALANC10001CDB3ET Ethernet Transformer Specifications:
- Dimensions: 4.5 x 3.2 x 3.5 mm
- RoHS/RoHS II Compliant
- MSL=1
- Support for IEEE 802.3u and 802.3ab standards
- Frequency range: 0.5-100 MHz
- Insertion Loss: 1.5 dB max at 60 MHz
- Return Loss: 16 dB at 60 MHz
- Operating temperature: -40°C to +85°C
- Part Number: ALANC10001-CDB3
- Reel Packaging: 2,200 pcs/reel
- Weight per carton: approximately 4 kg
Buy the Abracon ALANC10001 – Reliable LAN Transformer for Industrial Applications
Purchase the Abracon ALANC10001 Ethernet transformer online now for reliable gigabit data transmission. Its compact size and high performance make it ideal for industrial, networking, and surveillance systems. With RoHS compliance and a broad operating temperature range from -40°C to +85°C, it fits various demanding environments. Easy to integrate into servers, switches, and routers, it guarantees low insertion loss and excellent return loss at various frequencies. Elevate your networking solutions with this trusted component today.
Order your Abracon ALANC10001 gigabit Ethernet transformer today and ensure dependable network performance in industrial, surveillance, and communications projects.
Frequently Asked Questions
Where can I buy ABRACON ALANC10001CDB3ET?
You can click on the BUY or RFQ button to purchase ALANC10001CDB3ET from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ALANC10001CDB3ET?
You can download the ALANC10001CDB3ET datasheet or visit the ABRACON website for support.
Who is the manufacturer of ALANC10001CDB3ET?
ABRACON
