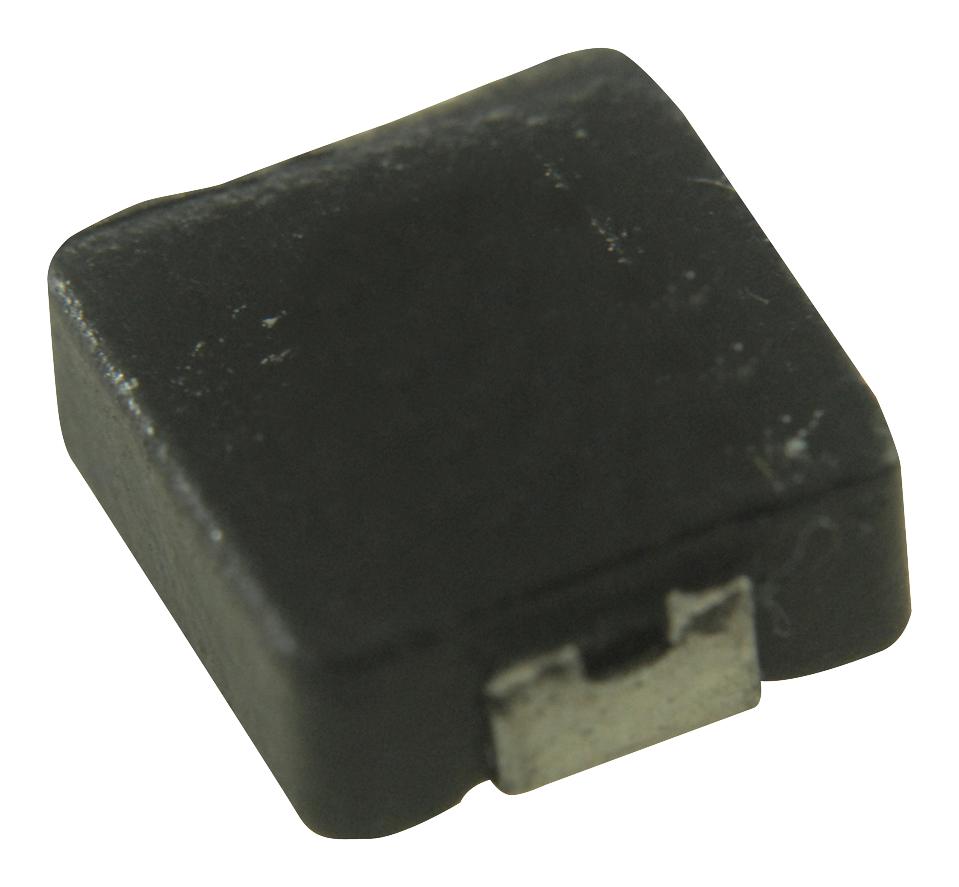

ABRACON AMDLA4010S2R2MT Molded Inductor
The AMDLA4010S2R2MT molded inductor is designed for switching applications between 100 kHz and 3 MHz, featuring shielded construction, soft saturation, and low DCR per cubic mm. Made with a metal alloy core, copper wire, and tin-plated terminals, it supports operating temperatures from -55°C to +125°C. The inductor measures approximately 4.4 mm x 4.2 mm, with a weight of 0.34 grams per unit, and is supplied on tape and reel packaging suitable for automated assembly. Its rugged design and high current handling make it ideal for automotive and industrial electronics.
ABRACON AMDLA4010S2R2MT Molded Inductor Specifications:
- Core Material: Metal Alloy
- Wire Material: Copper
- Terminal Plating: Tin
- Operating Temperature: -55°C to +125°C
- Max Temperature: +125°C
- Dimensions: Approx. 4.4 mm x 4.2 mm (mm)
- Weight: 0.34 g per unit
- Inductance Range: 0.22 µH to 10 µH
- Inductance Tolerance: ±20%
- Series Inductance Tolerance: M = 20%
- Packaging: Tape and Reel, 4,000 units per reel
- Max Operating Voltage: Typically 1.5 V-3 V
- Saturation Current: Specified at 30% reduction
- Test Conditions: 1 MHz, 1 V, 0 Adc, Humidity 65% RH
- Storage Temperature: -55°C to +125°C
- Maximum Part Temperature: +125°C
- Reflow Profile: Preheat 150°C-180°C for 60-120 sec, reflow at 230°C for 30-40 sec, peak at 250°C for 10 sec MAX
Buy the Abacon Series Inductor: AMDLA4010S2R2MT
Purchase the high-performance Abacon molded inductor online now to benefit from fast delivery and competitive pricing. This compact and shielded component delivers excellent electromagnetic compatibility and low DCR, making it ideal for switching power supplies, automotive electronics, and industrial automation. With a robust metal alloy core and tin-plated terminals, it ensures durability and reliable operation across a wide temperature range. Whether assembling prototypes or mass production, buy online to secure your supply of this versatile, high-current inductor that meets your demanding engineering needs.
Order your Abacon Series AMDLA4010S2R2MT molded inductor today and ensure reliable power management for your electronic projects.
