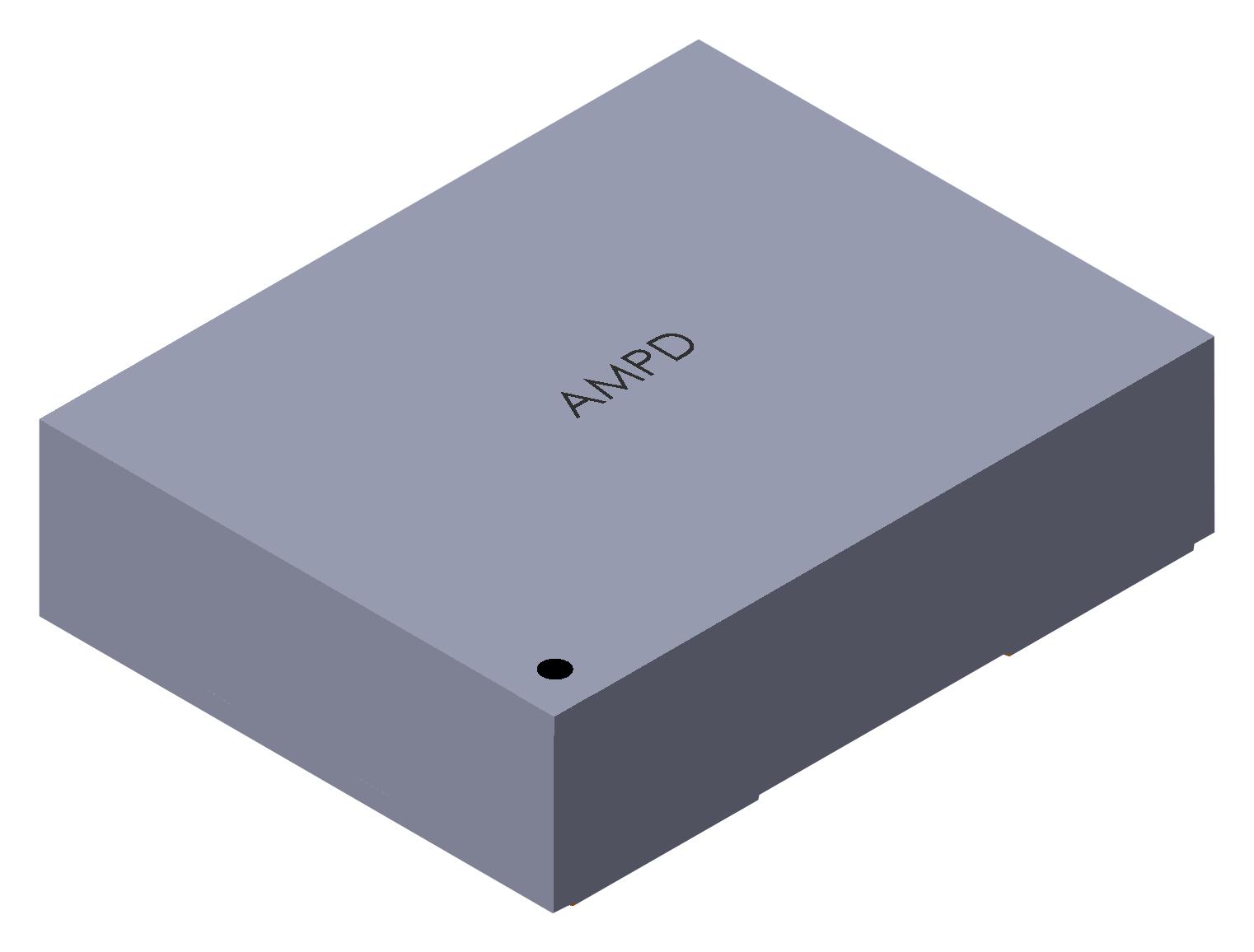

ABRACON AMPDEFIA09T Frequency Selectable MEMS Oscillator
The AMPDEF series offers frequency selectable MEMS oscillators with compact sizes from 1.6x1.2mm up to 3.2x2.5mm, RoHS compliant, and MSL=MSL1. These oscillators operate within a frequency range of 1MHz to 80MHz, featuring low power consumption of 1.3mA at 24MHz, and an operating temperature from -40°C to +85°C. They provide dual frequency output options, short startup times of 13ms, and stable aging parameters. Suitable for IoT, wearables, industrial, video, audio, drones, and robotics applications, these oscillators are packaged in VFLGA, VLGA, or DFN formats with recommended landings for easy PCB integration.
ABRACON AMPDEFIA09T Frequency Selectable MEMS Oscillator Specifications:
- Size options: 1.6 x 1.2 x 0.84 mm, 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- Frequency Range: 1.0000 to 80.0000 MHz
- Supply Voltage: 1.71 to 3.63 V; Typical at 1.8V – 24MHz
- Current Consumption: 1.3 mA at 24MHz, varies with frequency
- Operating Temperature: -40°C to +85°C
- Aging: ±1 ppm per year after first year
- Frequency stability: ±50 ppm (Options: E or G)
- Output drive: Low (≤5 mA) and standard (≥3 mA)
- Rise/Fall Time: 1.2 to 2.0 ns depending on load
- Jitter RMS: 23 to 30 ps, Cycle-to-cycle jitter: 120 to 190 ps
- ESD protection: 4kV HBM, 400V MM, 2kV CDM
- RoHS/RoHS II compliant, MSL=MSL1
- Package types: VFLGA, VLGA, DFN with recommended landings
- Typical startup time: 13ms; Settling time: 40 hours
- Minimum order quantities: 100-140 pieces depending on packaging
- Packaging: Reel (1000pcs, 3000pcs), Bag or Tube options
Buy the Abracon Series Frequency Selectable MEMS Oscillator: AMPDEFIA09T
Experience the reliability of Abracon's AMPDEF series frequency selectable MEMS oscillators designed for modern electronics. These small yet robust oscillators operate within 1MHz to 80MHz, featuring low power consumption, excellent temperature stability, and dual frequency output options. Ideal for IoT, wearables, industrial, audio, video, drones, and robotics applications, they offer quick startup times, RoHS compliance, and easy PCB integration with recommended landings. Order now online for fast delivery and ensure your project benefits from high stability and low jitter performance.
Get Abracon AMPDEFIA09T today—built for precision and long-lasting durability with wide frequency range and ultra-compact size.
Frequently Asked Questions
Where can I buy ABRACON AMPDEFIA09T?
You can click on the BUY or RFQ button to purchase AMPDEFIA09T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDEFIA09T?
You can download the AMPDEFIA09T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDEFIA09T?
ABRACON
