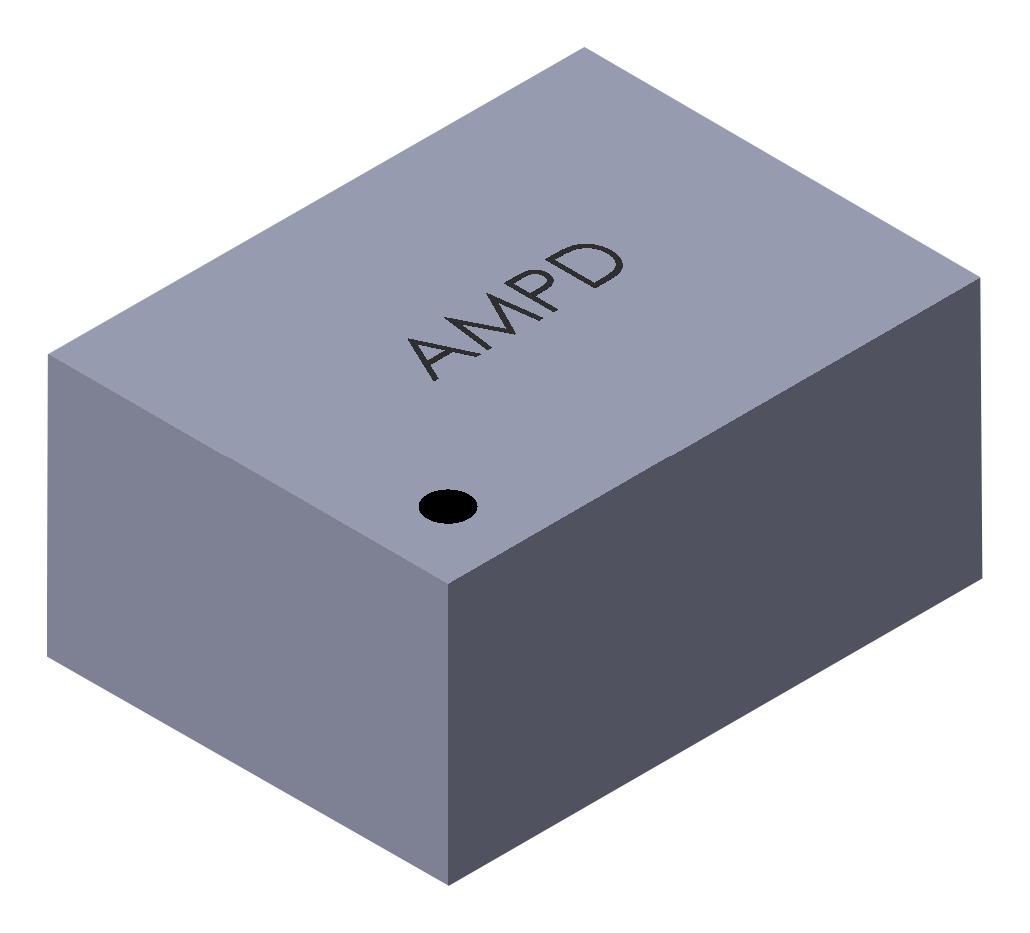

ABRACON AMPDGFHA04T MEMS Oscillator
The AMPDGFHA04T is a frequency tunable MEMS oscillator designed for compact, low power applications such as wearables, IoT devices, and industrial electronics. It features a wide frequency range from 1 MHz to 80 MHz, low operating current of 1.3 mA, and an operating temperature from -40°C to +85°C. Available in various small package sizes including 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, it is RoHS compliant and MSL=MSL1 rated, suitable for precise and durable performance in sensitive electronic environments.
ABRACON AMPDGFHA04T MEMS Oscillator Specifications:
- Frequency Range: 1.0000 to 80.0000 MHz
- Package Sizes: 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm
- RoHS/RoHS II Compliant
- MSL Rating: MSL1
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage: 1.8V ±10%, 1.71V to 3.63V
- Current Consumption: 1.3 mA (typ) at no load
- Output Type: Frequency selectable between two options
- Drive Strength: Low drive (≤5.0 mA), Standard drive (>3.0 mA)
- Start-up Time: Approximately 13 ms
- Aging Rate: ±1 ppm/year after first year
- Frequency Stability: ±50 ppm or ±100 ppm depending on option
- Output Logic Levels: Voh ≥0.7×Vv, Vol ≤0.2×Vv at I=1mA
- Reflow Profile: Preheat 150-200°C for 60-180 sec, peak 255-260°C for 20-40 sec
Buy the Abracon Series MEMS Oscillator: 1.6x1.2mm 80MHz Tunable Oscillator AMPDGFHA04T
Purchase the Abracon AMPDGFHA04T MEMS Oscillator online today to enjoy reliable, low-power, and highly stable frequency tuning for your IoT, wearable, or industrial device. Designed for easy integration with various package options including 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, it complies with RoHS standards and offers quick delivery. Perfect for projects demanding high stability, minimal power consumption, and quick start-up, ensuring durable operation in a wide temperature range from -40°C to +85°C.
Get Abracon AMPDGFHA04T today—built for precision and long-lasting durability in compact applications.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA04T?
You can click on the BUY or RFQ button to purchase AMPDGFHA04T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA04T?
You can download the AMPDGFHA04T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA04T?
ABRACON
