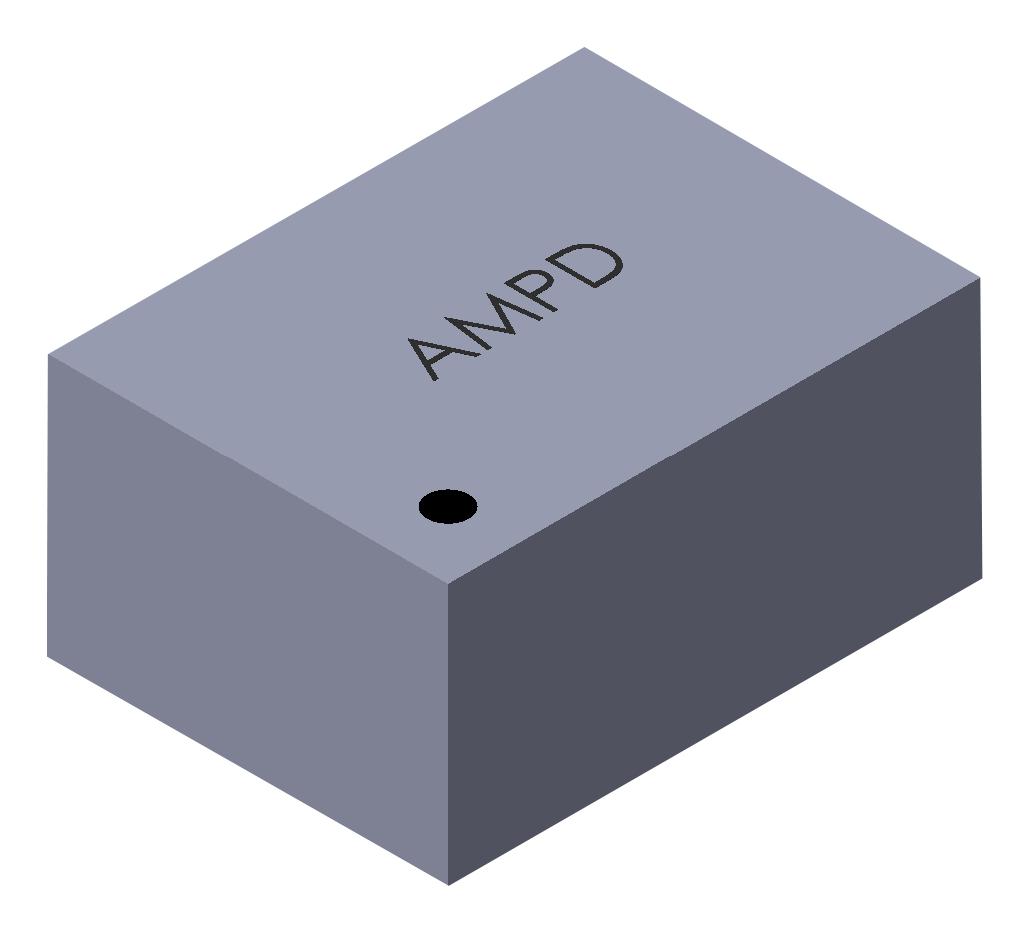

ABRACON AMPDGFHA13T MEMS Oscillator
The AMPDGFHA13T series features frequency selectable MEMS oscillators in compact packages, ideal for low power, high-frequency applications ranging from 1 MHz to 80 MHz. Designed with RoHS compliance and MSL=MSL1 rating, these oscillators offer a wide temperature range of -40°C to +85°C, ensuring reliable performance in industrial environments. The series supports multiple output configurations with low drive options, providing stable, low-jitter clock signals suitable for IoT, wearables, drones, and industrial electronics. Their small form factor and fast frequency settling time make them perfect for space-constrained systems requiring precise timing.
ABRACON AMPDGFHA13T MEMS Oscillator Specifications:
- Package Sizes: 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm
- RoHS/RoHS II Compliant
- MSL=MSL1
- Frequency Range: 1.0000 to 80.0000 MHz
- Supply Voltage: 1.71V to 3.63V
- Current Consumption: 1.3mA at no load
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ~50+50 ppm (Options vary)
- Rise/Fall Time: 1.2 to 2.0 ns
- Output Drive Options: Low drive, standard drive
- Duty Cycle: 40% to 60%
- Reflow Profile: Preheat 150°C-200°C, Peak 255°C-260°C
- Packaging: Reel & tube options, MOQ varies
- ESD Protection: 4kV HBM, 400V MM, 2kV CDM
Buy the Abracon AMPDGFHA13T – Reliable MEMS Oscillator for Industrial Applications
Discover the reliable, low power MEMS oscillators in the series AMPDGFHA13T. With selectable frequencies from 1MHz to 80MHz, these compact and RoHS-compliant devices are perfect for IoT, wearables, drones, and industrial automation. They feature wide temperature tolerance, fast settling times, and various output configurations including low drive options. Ideal for space-constrained applications, they ensure stable, jitter-free clock signals. Buy online today to get quick delivery and superior timing performance for your next project.
Order your Abracon series AMPDGFHA13T MEMS oscillator today and enhance your project’s stability and space-saving design with reliable performance.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFHA13T?
You can click on the BUY or RFQ button to purchase AMPDGFHA13T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFHA13T?
You can download the AMPDGFHA13T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFHA13T?
ABRACON
