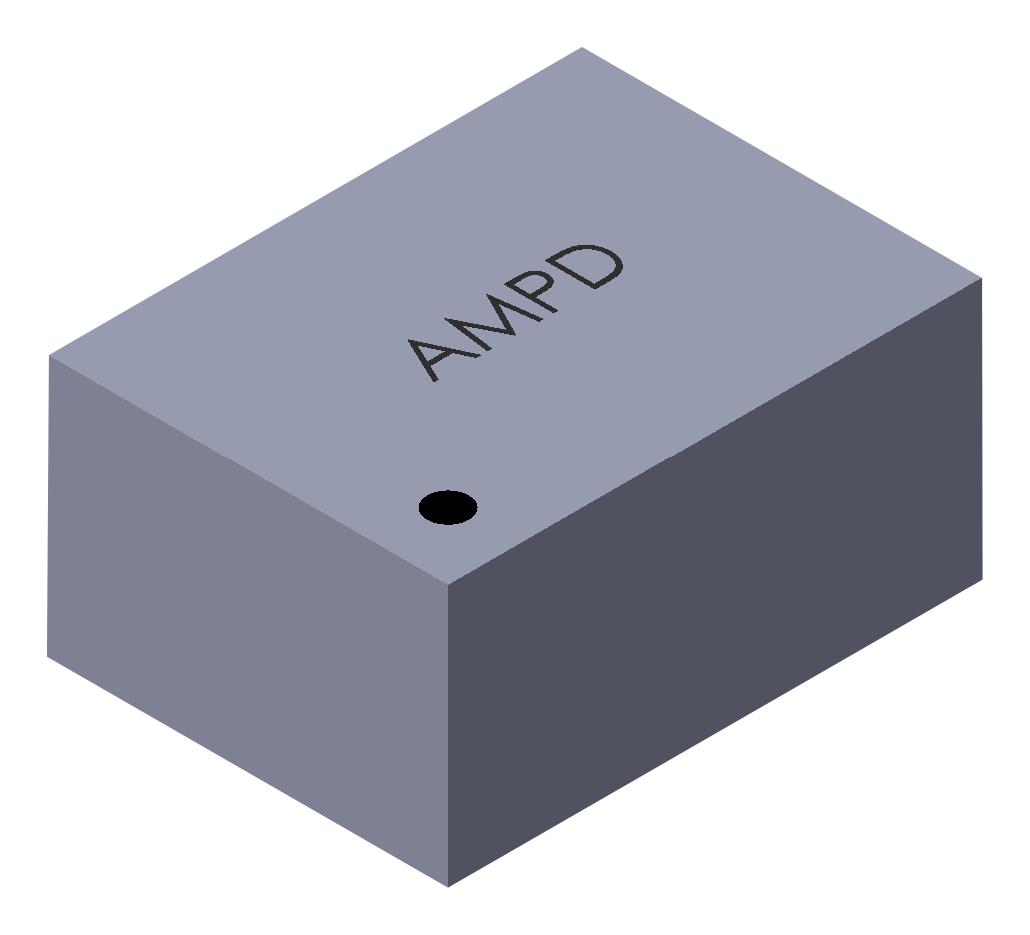

ABRACON AMPDGFIA09 MEMS Oscillator
The AMPDGFIA09 is a frequency selectable MEMS oscillator designed for compact, low-power applications across a wide temperature range. Featuring an adjustable frequency output between 1 MHz and 80 MHz, it offers low current consumption of approximately 1.3 mA and operates at voltages from 1.7V to 3.6V. Its small form factors include 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, and 3.2 x 2.5 mm packages, all RoHS compliant and MSL=MSL1. Ideal for IoT, wearables, and industrial applications, this device provides fast settling time and wide temperature tolerance from -40°C to +85°C.
ABRACON AMPDGFIA09 MEMS Oscillator Specifications:
- Package Sizes: 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm
- Frequency Range: 1 MHz to 80 MHz
- Supply Voltage: 1.7V to 3.6V
- Current Consumption: ~1.3 mA at no load
- Operating Temperature Range: -40°C to +85°C
- Frequency Settling Time: 40 hours
- Output Drive: Standard >3 mA; Low Power >1 mA
- RoHS/RoHS II Compliant, MSL=MSL1
- Output Frequency Stability: ±50 ppm over temperature
- Aging: ±1 ppm per year after first year
- Rise/Fall Time: 1.2 to 2.0 ns
- Input/Output Logic Levels: Compatible with Vv=1.8V/2.5V/3.3V
- Reflow Soldering Profile: Preheat at 150°C-200°C for 60-180 sec, peak 255°C-260°C for 20-40 sec.
Buy the Abracon Series MEMS Oscillator: AMPDGFIA09
Get the Abracon AMPDGFIA09 MEMS oscillator online now for your precise timing needs. Compact and power-efficient, it supports 1 to 80 MHz frequency range, ideal for IoT, wearables, and industrial devices. Easy to integrate with fast settling time, wide operating temperature, and RoHS compliance. Perfect for space-constrained projects requiring stable and versatile frequency options. Purchase today to enhance your electronic designs with dependable, high-performance timing solutions from a trusted provider.
Order your Abracon AMPDGFIA09 frequency selectable MEMS oscillator today and enhance your project with reliable, low-power timing solutions.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA09?
You can click on the BUY or RFQ button to purchase AMPDGFIA09 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA09?
You can download the AMPDGFIA09 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA09?
ABRACON
