ABRACON AMPDGFIA09T Frequency Selectable MEMS Oscillator
The AMPDGFIA09T is a frequency selectable MEMS oscillator designed for compact and low power applications. Available in several small package sizes including 1.6x1.2mm, 2.0x1.6mm, and 2.5x2.0mm, it offers an output frequency range of 1MHz to 80MHz. Key features include low current consumption of 1.3mA, wide temperature operation from -40°C to +85°C, and RoHS compliance. Ideal for portable, wearable, and IoT devices needing stable, low-power clock sources with quick frequency settling time.
ABRACON AMPDGFIA09T Frequency Selectable MEMS Oscillator Specifications:
- Package Sizes: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Frequency Range: 1MHz to 80MHz
- Supply Voltage: 1.71V to 3.63V
- Current Consumption: 1.3mA (typ) at 24MHz, Vdd=1.8V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +150°C
- Frequency Stability: ~50+50 ppm to ~5+5 ppm depending on options
- Output Logic Levels: Voh=0.2*Vdd, Vol=0.8*Vdd
- Drive Current: Standard >3mA, Low Drive >1mA
- RoHS and RoHS II Compliant
- MSL=MSL1
- Reflow Soldering Profile: Preheat 150-200°C for 60-180 sec, Reflow at 217°C for 60-150 sec, Peak 255-260°C for 20-40 sec

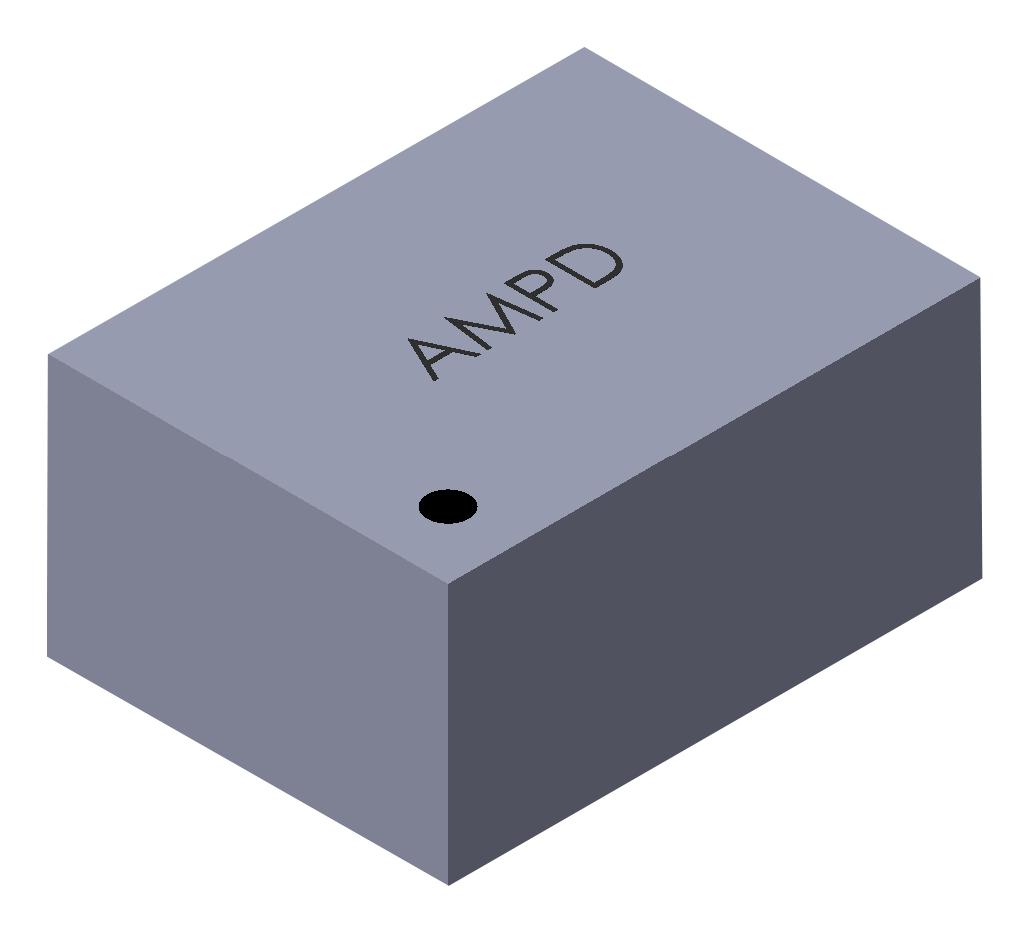

Buy the Abracon AMPDGFIA09T – Reliable MEMS Oscillator for Industrial Applications
Order the Abracon AMPDGFIA09T online today to get a compact and highly reliable MEMS oscillator. Perfect for IoT, industrial, and wearable devices, this oscillator offers a wide frequency range from 1MHz to 80MHz, low power consumption of just 1.3mA, and operating temperatures from -40°C to +85°C. Its RoHS compliance ensures environmentally friendly manufacturing. With quick frequency settling time and multiple package options, it is ideal for space-constrained, high-performance applications requiring stable, low-power clock sources. Purchase now to enhance your device’s reliability and efficiency.
Buy Abracon AMPDGFIA09T now and experience unmatched reliability and performance with low power consumption suitable for IoT, wearables, and industrial use.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA09T?
You can click on the BUY or RFQ button to purchase AMPDGFIA09T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA09T?
You can download the AMPDGFIA09T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA09T?
ABRACON
