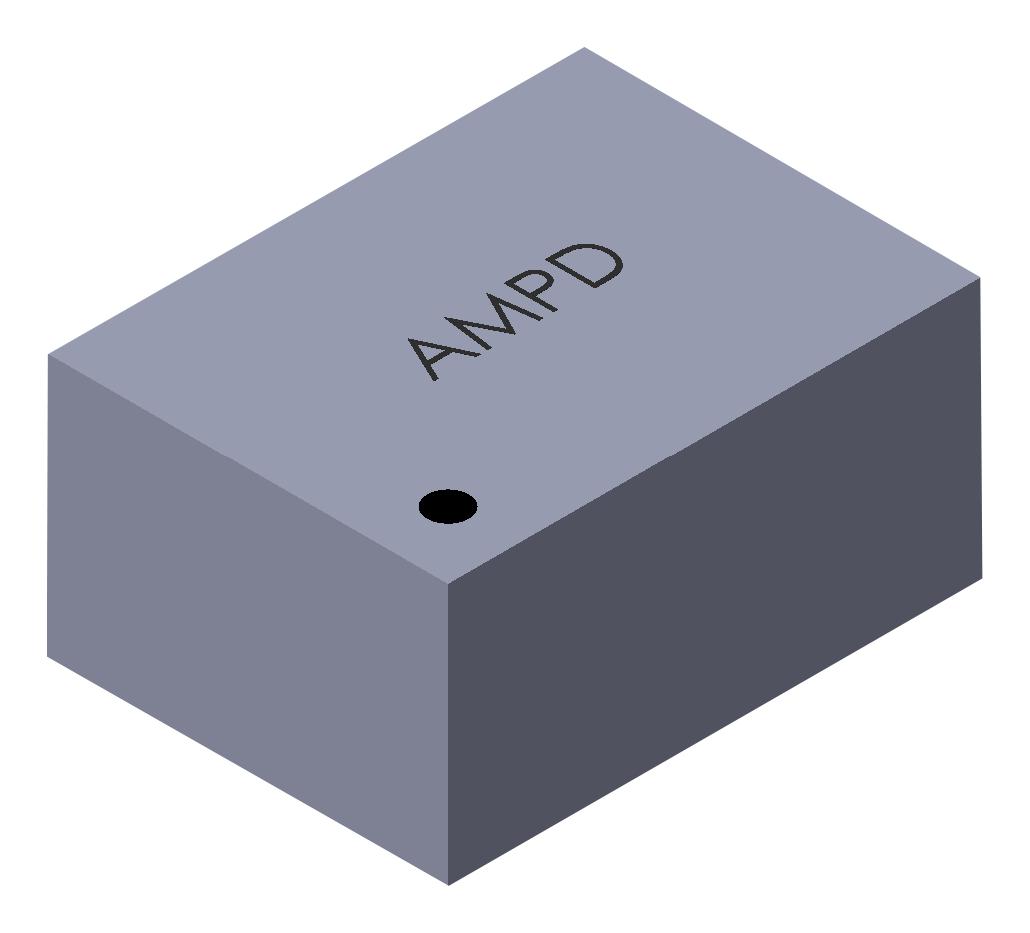

ABRACON AMPDGFIA13T MEMS Oscillator
The AMPDGFIA series offers frequency selectable MEMS oscillators with compact dimensions ranging from 1.6 x 1.2 mm up to 3.2 x 2.5 mm, RoHS compliant and MSL=MSL1 rated. These oscillators operate over -40°C to +85°C, with low power consumption of approximately 1.3mA, and support frequencies from 1 MHz to 80 MHz. They feature a wide voltage range, short settling time of around 40 hours, and different output drive options. Suitable for audio/video applications, wearables, IoT, drones, and robotics, delivering high stability and fast startup times.
ABRACON AMPDGFIA13T MEMS Oscillator Specifications:
- Dimensions: 1.6 x 1.2 x 0.84 mm to 3.2 x 2.5 x 0.85 mm
- Frequency Range: 1.0000 to 80.0000 MHz
- Supply Voltage: 1.71 to 3.63 V
- Current Consumption: 1.3 mA at no load
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +150°C
- Frequency Stability: ±50 ppm (options vary)
- Output Frequency Settling Time: 40 hours
- Output Drive Options: Standard (>3 mA), Low Drive (>1 mA)
- ESD Sensitive, RoHS/RoHS II compliant, MSL=MSL1
- Duty Cycle: 40% to 60%
- Output Logic Levels: Vv, Vo, Vin, Vi as per digital standards
- Rise/Fall Time: 1.2 to 2.0 ns
- Reflow Profile: Preheat 150°C–200°C, Peak 255–260°C
- Packaging: Tape & Reel or bulk quantities, MOQ varies
- Mechanical Dimensions: Precise outline with terminal pitch 1.65 mm, standoff max 0.05 mm
Buy the Abracon Series MEMS Oscillators: AMPDGFIA13T
Purchase the Abracon series MEMS Oscillator online today for high stability, low power consumption, and proven reliability. Perfect for IoT, wearables, audio/video devices, drones, and industrial automation, these oscillators operate across wide temperature ranges and frequencies up to 80 MHz. They offer quick startup times, RoHS compliance, and various package sizes to match your design needs. Enjoy fast delivery with bulk or tape and reel packaging options, ensuring seamless integration into your projects and manufacturing lines.
Get Abracon AMPDGFIA13T today—built for precision, low power, and reliable performance in compact form factors.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA13T?
You can click on the BUY or RFQ button to purchase AMPDGFIA13T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA13T?
You can download the AMPDGFIA13T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA13T?
ABRACON
