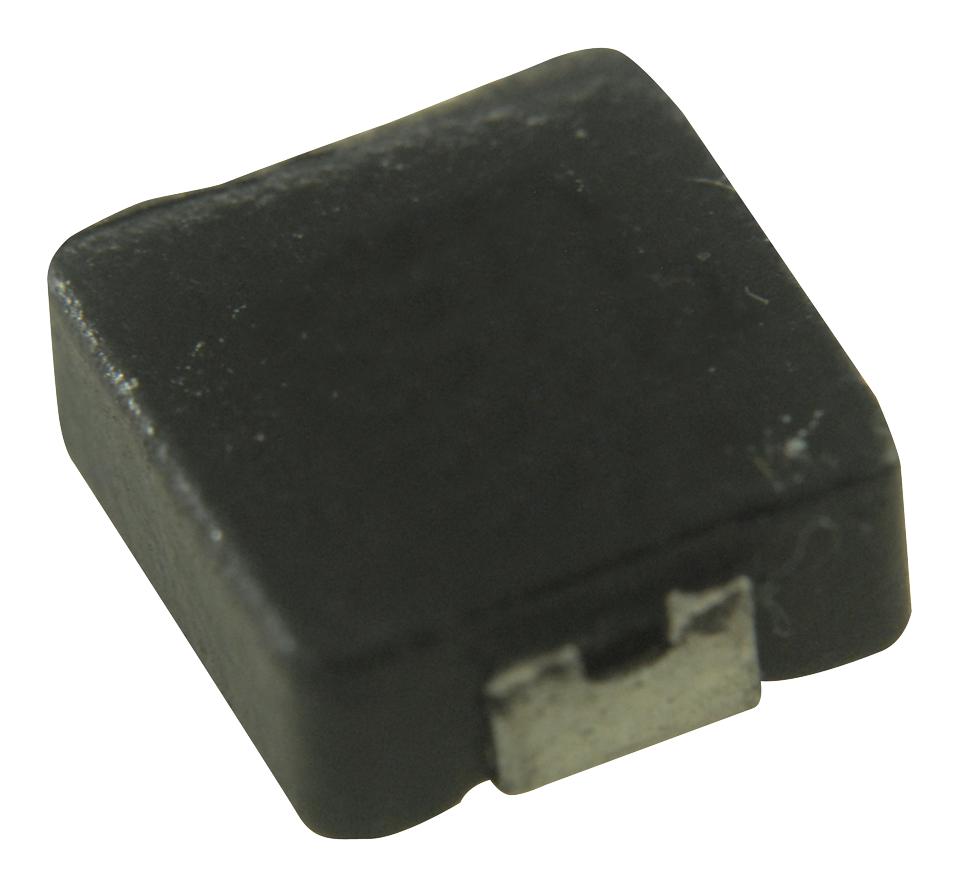

ABRACON AMPLA7030Q100MT Automotive Molded Inductor
The AMPLA7030Q100MT is an automotive molded inductor designed for switching frequencies between 100KHz and 2MHz. It features shielded construction, soft saturation, high current density, and is qualified to AEC-Q200 standards. With a maximum temperature of +125°C and a wide operating temperature range from -55°C to +125°C, this inductor ensures reliable performance in automotive applications. Manufactured with a carbonyl powder core, copper wire, and tin-plated terminals, it offers excellent durability and electrical characteristics suitable for demanding circuits. Packaging options include tape and reel, facilitating easy integration into automated assembly processes.
ABRACON AMPLA7030Q100MT Automotive Molded Inductor Specifications:
- Inductance: 10μH
- Tolerance: 20%
- Maximum Temperature: +125°C
- Operating Temperature Range: -55°C to +125°C
- Core Material: Carbonyl Powder
- Wire Material: Copper
- Terminal Plating: Tin
- Rated Current (Irms): 12A
- Saturation Current: 17A
- Dimensions: Length approx. 16.4 mm, width approx. 16 mm, height approx. 13 mm
- Packaging: Tape and Reel (1,000 pcs/reel)
- Weight per Unit: 0.75g
- Operating Frequency Range: 100KHz to 2MHz
- Flux Shielded, Soft Saturation Design
- Conforms to automotive quality standards (AEC-Q200)
Buy the Buy Abracon Automotive Molded Inductor Part Number AMPLA7030Q100MT Online
Purchase the Abracon Automotive Molded Inductor, AMPLA7030Q100MT, online today for premium quality and dependable performance in your automotive and electronic applications. This shielded inductor features high current density, soft saturation, and is qualified to meet AEC-Q200 standards. Designed for switching frequencies between 100KHz and 2MHz, it ensures optimal electrical characteristics, durability, and reliable operation within a wide temperature range. Ideal for demanding automotive circuits, its convenient tape and reel packaging make it perfect for automated assembly lines, providing seamless integration into your production.
Order your Abracon SeriesAMPLA7030Q100MT today and give your car or electronic projects reliable inductance performance with high current capacity.
