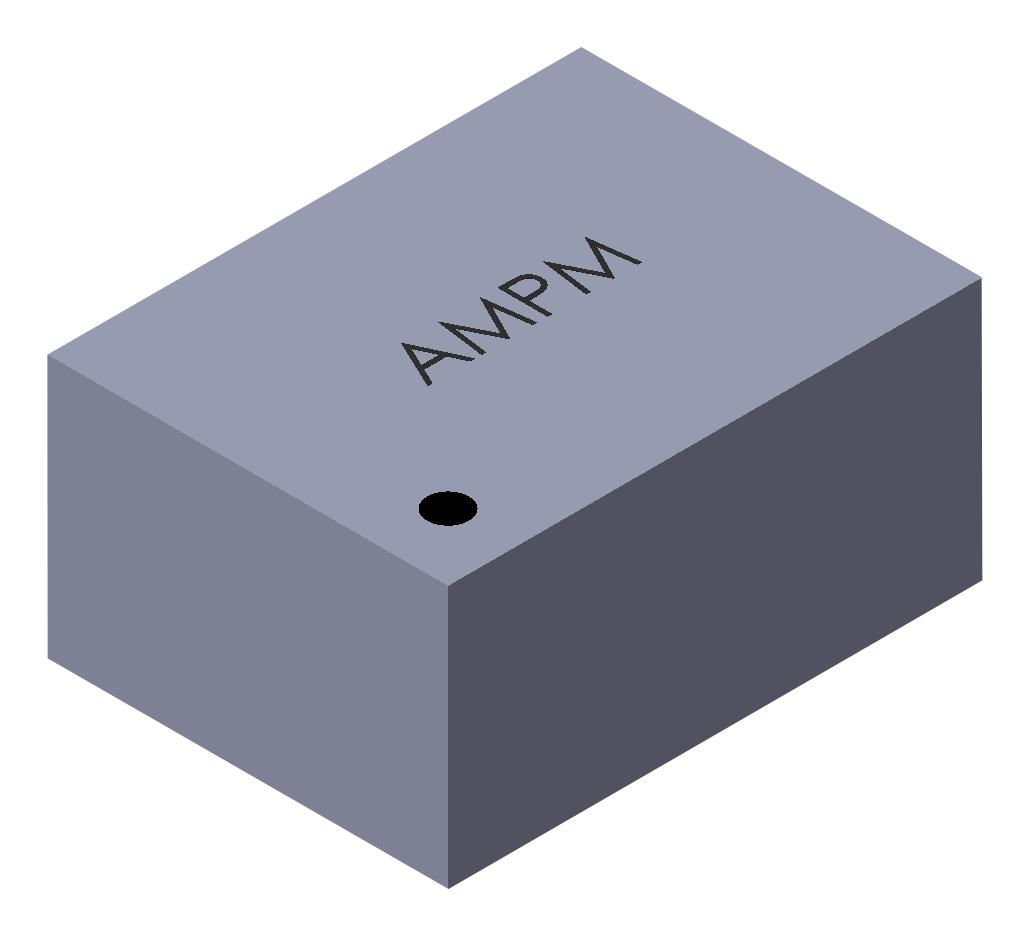

ABRACON AMPMGFB500000T MEMS Oscillator
These state-of-the-art MEMS oscillators by Abracon feature compact sizes ranging from 1.6 x 1.2 mm to 3.2 x 2.5 mm, making them ideal for wearable, IoT, and industrial applications. They operate over a wide temperature range from -40°C to +85°C, with output frequencies from 1 MHz up to 80 MHz. Low power consumption (as low as 1.3 mA), RoHS compliance, and MSL=MSL1 certification ensure reliability and environmental friendliness. Designed for high-performance timing solutions, these oscillators exhibit minimal jitter, fast start-up times, and customizable options for drive strength and stability. Their small footprint and efficient power profile make them suitable for drones, robotics, audio/video, and sensitive electronic environments.
ABRACON AMPMGFB500000T MEMS Oscillator Specifications:
- Size options: 1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm, 3.2 x 2.5 mm
- Operating temperature: -40°C to +85°C
- Frequency range: 1 MHz to 80 MHz
- Supply voltage: 1.71 V to 3.63 V
- Current consumption: as low as 1.3 mA
- RoHS and RoHS II compliant
- Package: VFLGA, VLGA, DFN with mechanical dimensions specified
- ESD protection: 4kV HBM, 400V MM, 2kV CDM
- Join to 4 terminals, terminal pitch: approximately 1.55 mm
- Start-up time: noin microseconds, jitter: minimal, aging ppm: ±1 per year after first year
- Frequency stability options: ±25 ppm, ±50 ppm over -40°C to +85°C
- Manufactured with RoHS-compliant materials, suitable for sensitive electronics, industrial applications, and IoT devices.
Buy the Abracon AMPMGFB500000T – Reliable MEMS Oscillator for Industrial Applications
Discover high-performance, compact MEMS oscillators by Abracon that deliver stable frequency output across a wide temperature range. Perfect for IoT, wearables, drones, and industrial projects, these oscillators feature low power consumption, RoHS compliance, and proven reliability. With sizes ranging from 1.6 x 1.2 mm to 3.2 x 2.5 mm, they offer flexibility for space-constrained applications. Designed with fast start-up times and minimal jitter, order your Abracon MEMS oscillator online today for trusted quality and seamless integration into your electronic systems.
Order your Abracon series AMPMGFB500000T today and ensure precise timing with a low-power, reliable MEMS oscillator designed for demanding environments.
Frequently Asked Questions
Where can I buy ABRACON AMPMGFB500000T?
You can click on the BUY or RFQ button to purchase AMPMGFB500000T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPMGFB500000T?
You can download the AMPMGFB500000T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPMGFB500000T?
ABRACON
