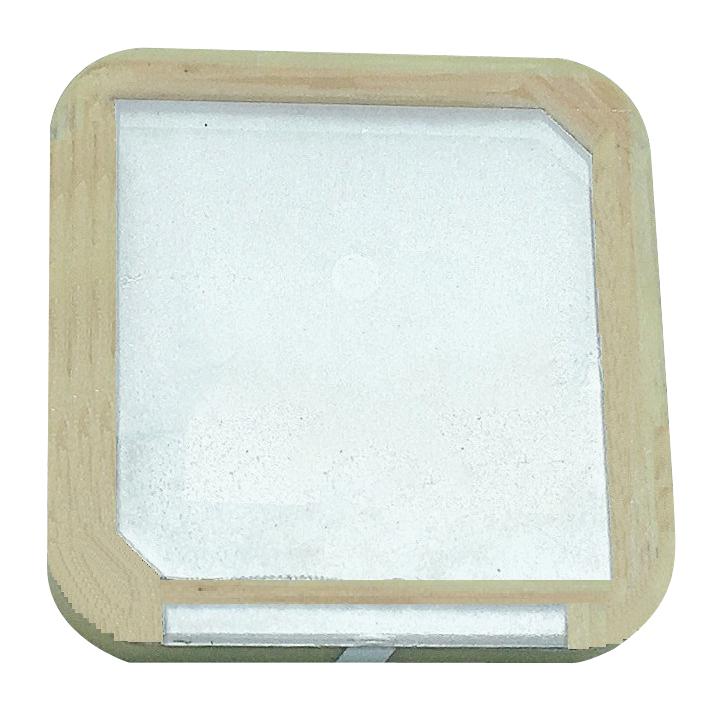

ABRACON APAKN2504C2GT GNSS Ceramic Patch Antenna
The GPS/Galileo + GLONASS Ceramic Patch Antenna is a compact 25.0 x 25.0 x 4.0mm device designed for reliable GNSS applications. It offers a gain of 3.6 dBi and RHCP polarization to ensure optimal signal reception over GPS, Galileo, and GLONASS bands. Suitable for IoT, remote monitoring, and M2M projects, it performs effectively on a 70x70mm ground plane. The antenna is RoHS compliant, MSL=1 rated, and features dual-band response for precise positioning and tracking in various industrial and navigation systems.
ABRACON APAKN2504C2GT GNSS Ceramic Patch Antenna Specifications:
- Dimensions: 25.0 x 25.0 x 4.0mm
- Material: Ceramic
- Frequency Bands: GPS/Galileo 1575.42+1.023 MHz, GLONASS 1602+5.0 MHz
- Gain: 3.6 dBi (peak)
- Polarization: RHCP
- Return Loss: GPS/Galileo and GLONASS dB values specified
- Application Environment: Effected by ground plane size and component proximity
- RoHS/RoHS II Compliant
- MSL: 1
- Operating Temperature Coefficient: 20°C
- Reflow Profile: Sn/Ag/Cu solder paste, recommended reflow conditions
- Packaging: 50 elements per package, vacuum-packed, 1000 units total, carton size 37x37x17cm
Buy the Abracon APAKN2504C2GT – Reliable GNSS Antenna for Industrial Applications
Enhance your navigation and IoT projects with this compact GNSS Ceramic Patch Antenna. Its dual-band response, 3.6 dBi gain, and RHCP polarization ensure reliable GPS, Galileo, and GLONASS signal reception. Designed for applications requiring high accuracy and stability, it’s suitable for remote monitoring, M2M, and industrial systems. The RoHS-compliant antenna is easy to install, features a 25x25mm form factor, and offers excellent performance on a 70x70mm ground plane. Order online now to upgrade your positioning solutions quickly and efficiently.
Order your Abracon Series APAKN2504C2GT GPS/Galileo + GLONASS Ceramic Patch Antenna today and ensure precise positioning for your industrial projects.
Frequently Asked Questions
Where can I buy ABRACON APAKN2504C2GT?
You can click on the BUY or RFQ button to purchase APAKN2504C2GT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAKN2504C2GT?
You can download the APAKN2504C2GT datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAKN2504C2GT?
ABRACON
