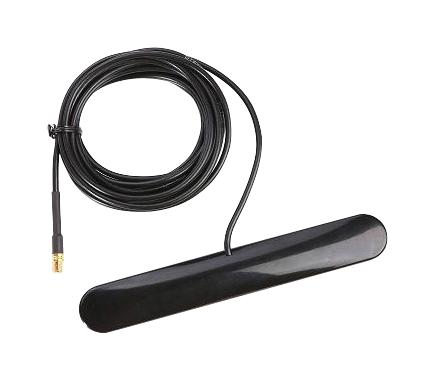

ABRACON APAMS102 External Adhesive Mount Antenna
The ABRACON APAMS-102 is a versatile external GSM antenna featuring a compact design and adhesive mount for simple integration. It offers high sensitivity and reliability, making it suitable for wireless communications, GSM, GPRS, CDMA, UMTS, and vehicle monitoring systems. The antenna operates across a broad frequency range and boasts a gain optimized for various bands. It is RoHS compliant and designed for ease of use in a variety of applications.
ABRACON APAMS102 External Adhesive Mount Antenna Specifications:
- Frequency Range: 820-2170 MHz
- Bandwidth: 140-170 MHz
- VSWR: 2:1
- Polarization Model: Linear Polarization
- Impedance: 50 Ω
- Gain: 1-3 dBi
- Azimuth: Omni-Directional
- Operating Temperature: -40 to +80 ˚C
- Storage Temperature: -45 to +85 ˚C
- Cable Length: 300±50 cm
- RF Connector: SMA-J3
- RF Cable: RG174
- Thickness: 6 mm
- Enclosures: Plastic
- Mounting Type: Adhesive Tape
Buy the APAMS-102 ABRACON External Adhesive Mount Antenna | myMectronic
Purchase the ABRACON APAMS-102 External Adhesive Mount Antenna securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON APAMS102?
You can click on the BUY or RFQ button to purchase APAMS102 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAMS102?
You can download the APAMS102 datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAMS102?
ABRACON
