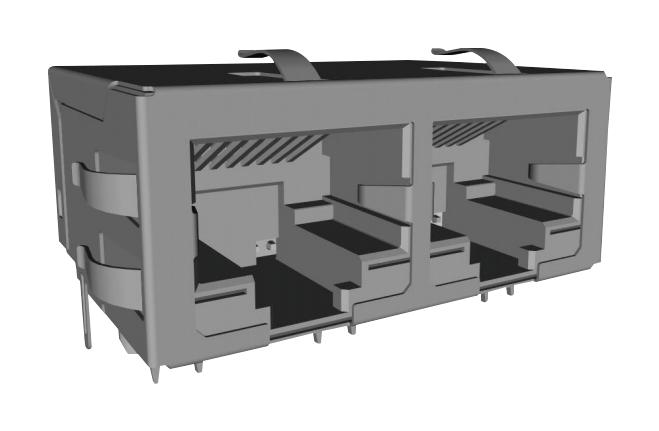

ABRACON ARJM12A1502NNEW2 Ethernet Transformer
The RJ45 1x2 Multiport Ethernet transformer supports 100/1000/2.5G/5G Base-T speeds, compliant with IEEE 802.3 standards. Constructed with high-performance integrated magnetics, it offers EMI suppression and extended operating temperature from -40°C to 85°C. The compact size of 31.2 x 21.3 x 13.6 mm and UL certification number E503350 ensure reliability for industrial, server, switch, and router applications. Its RoHS compliance makes it environmentally friendly, suitable for high-speed data, VoIP, IP communications, video surveillance, and broadcast video systems.
ABRACON ARJM12A1502NNEW2 Ethernet Transformer Specifications:
- Size: 31.2 x 21.3 x 13.6 mm
- UL Certification Number: E503350
- RoHS/RoHS II Compliant
- Mechanical Dimensions include housing and insert materials: PBT UL94V-0, contact materials are phosphor bronze with nickel and 100% Sn plating
- Supports Ethernet speeds: 100Base-T, 1000Base-T, 2.5G Base-T, 5G Base-T
- Electrical features include turns ratio at 100kHz, leakage inductance, DC resistance, and compliance with IEEE 802.3
- Operating temperature: -40°C to 85°C
- Materials: brass metal shell, diffused epoxy LED lens, gold and nickel plating on contacts
- Surface-mount design with recommended land pattern for 8 or 10 pins with or without LEDs
- RoHS compliant, MSL=1, UL certified for global industrial applications
Buy the AVX RJ45 1x2 Multiport 100/1000/2.5G/5G Base-T – Reliable Ethernet Transformer for Industrial Applications
Purchase the AVX Ethernet Transformer RJ45 1x2 Multiport featuring multi-gigabit 100/1000/2.5G/5G Base-T support. Designed for industrial, server, and video surveillance applications, it offers robust EMI suppression and extended temperature range from -40°C to 85°C. Its compact size and RoHS compliance ensure environmental and operational reliability. Whether building switches, routers, or high-speed data systems, buy online today and enhance your network's performance with proven, UL-certified quality for demanding industrial environments.
Order your AVX RJ45 1x2 Multiport transformer today and upgrade your industrial network infrastructure with high-speed, UL-certified performance.
