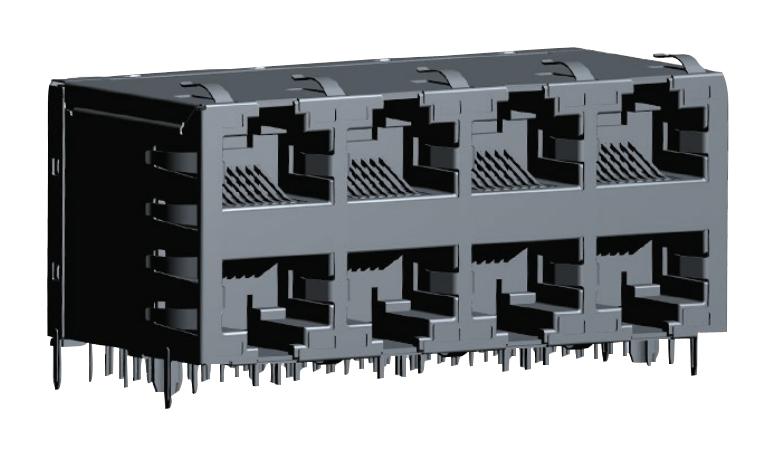

ABRACON ARJM24A1547ABEW2 Ethernet Multiport Module
The RJ45 multiport module supports high-speed Ethernet connections, including 10, 100, 1000, 2.5G, and 5G Base-T standards, ideal for servers, switches, and routers. Made with UL94V-0 PBT housing, nickel-plated phosphor bronze contacts, and brass metal shell, it ensures durability and EMI suppression. The module accommodates different LED configurations, has a compact size of 59.0 x 28.1 x 25.5 mm, and is RoHS compliant. Suitable for industrial and commercial applications with extended temperature ratings from -40°C to 85°C.
ABRACON ARJM24A1547ABEW2 Ethernet Multiport Module Specifications:
- Housing Material: PBT, UL94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Nickel, 100% Sn
- Metal Shell Material: Brass, Nickel Plated
- Dimensions: 59.0 x 28.1 x 25.5 mm
- UL Certification Number: E503350
- RoHS/RoHS II Compliant
- Wave Soldering Profile: 280°C for 10 sec or more
- Applicable Standards: IEEE 802.3, UL Certified
- Operating Temperature: -40°C to 85°C
- Ingress Protection: Suitable for diverse environments
- LED Colors: Green (565nm), Yellow (585nm), forward voltages 2.2V/2.1V
- Gold Plating Thickness: 6μ”
Buy the Buy Abracon RJ45 Multiport Part Number ARJM24A1547ABEW2 Online
Purchase the Abracon Ethernet Multiport Module online today to ensure reliable high-speed network connections supporting 10/100/1000/2.5G/5G Base-T standards. Designed with UL94V-0 PBT housing, nickel-plated phosphor bronze contacts, and a brass shell, the module offers durability, EMI suppression, and extended temperature operation from -40°C to 85°C. Compact and RoHS compliant, it is suitable for professional server, switch, and router applications. Secure fast shipping and quality assurance when you buy online.
Get Abracon RJ45 Multiport Ethernet Module today—built for high-speed data transfer and long-lasting durability.
Frequently Asked Questions
Where can I buy ABRACON ARJM24A1547ABEW2?
You can click on the BUY or RFQ button to purchase ARJM24A1547ABEW2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJM24A1547ABEW2?
You can download the ARJM24A1547ABEW2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJM24A1547ABEW2?
ABRACON
