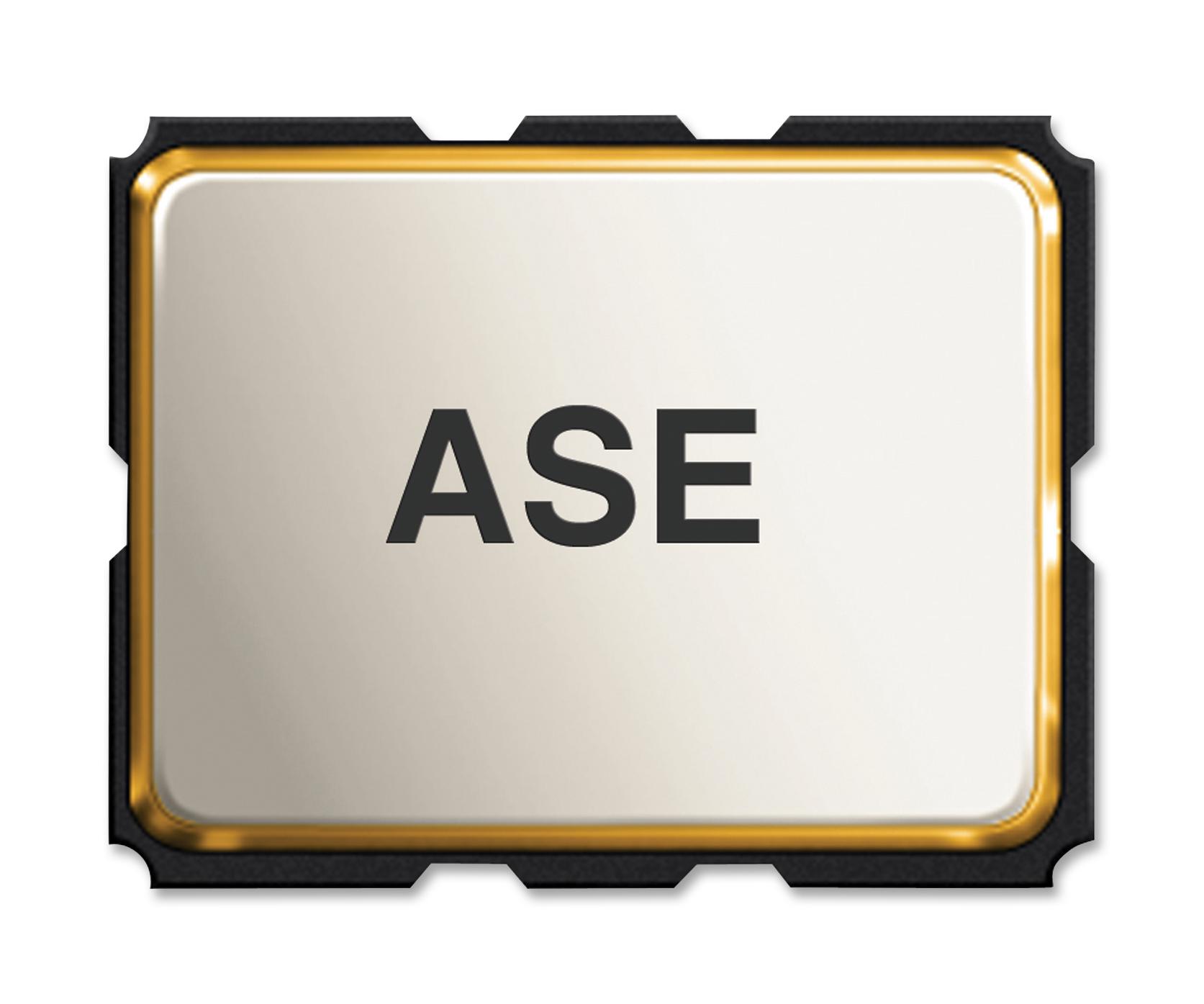

ABRACON ASE24000MHZLCT SMD Crystal Oscillator
The ASE series 3.3V CMOS compatible SMD crystal oscillator is a compact 3.2x2.5x1.2mm component designed for high frequency applications. It supports frequencies from 0.625MHz up to 200MHz, with excellent stability, low jitter, and low current consumption. Suitable for various electronic equipment such as CCD cameras, PC-connected devices, wireless communication, laptops, and SSDs, it complies with RoHS standards. It features a tri-state function for stand-by mode, making it ideal for space-constrained industrial and consumer electronics requiring reliable oscillation.
ABRACON ASE24000MHZLCT SMD Crystal Oscillator Specifications:
- Frequency Range: 0.625 MHz to 200 MHz
- Supply Voltage: +3.3V
- Package Dimensions: 3.2 x 2.5 x 1.2 mm
- Temperature Range: -10°C to +70°C (standard), optional wider options available
- Stability: ±100 ppm
- Start-up Time: 1-2 ms depending on frequency
- Output Load: 15 pF CMOS
- Output Voltage: VOH 0.9*Vdd, VOL 0.1*Vdd
- RoHS compliant, MSL Level 1, suitable for RoHS reflow
- Low current consumption: approximately 10-55 mA depending on frequency
- Jitter: RMS jitter as low as 2.2 ps, peak-to-peak jitter around 28 ps
- Tri-state function for standby or power-saving mode
- Materials: standard for industrial-grade oscillators, suitable for demanding applications
Buy the Abracon ASE24000MHZLCT – Reliable Oscillator for Industrial Applications
Enhance your electronic assemblies with the Abracon SMD Crystal Oscillator, offering frequencies up to 200MHz, low jitter, and reliable operation. Its compact 3.2x2.5mm package supports space-critical applications such as cameras, wireless modules, and SSDs. RoHS compliance ensures environmentally friendly manufacturing. The oscillator features a tri-state function for power-saving standby mode, low current consumption, and excellent stability over wide temperature ranges. Perfect for industrial, consumer, and communication equipment needing precise timing with robust performance and minimal footprint.
Buy Abracon ASE24000MHZLCT now and experience unmatched reliability and performance for your electronic device projects.
Frequently Asked Questions
Where can I buy ABRACON ASE24000MHZLCT?
You can click on the BUY or RFQ button to purchase ASE24000MHZLCT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASE24000MHZLCT?
You can download the ASE24000MHZLCT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASE24000MHZLCT?
ABRACON
