ABRACON ASGTX5DAF12500000 High-Performance TCXO
The jitter optimized, factory programmable TCXO offers ultra-low RMS phase jitter of 332 fs at 156.25MHz and provides outstanding frequency stability over temperature and time. Designed for high-performance networking, RF systems, datacenter, and test & measurement applications, it features configurable output options such as LVPECL, LVDS, HCSL, and CML, with a footprint of 5.0 x 3.2mm and low power consumption of 75mA typical. The device ensures compliance with industry standards, including RoHS, and offers frequencies up to 2,100MHz with ±3ppm stability over the product lifetime.
ABRACON ASGTX5DAF12500000 High-Performance TCXO Specifications:
- Frequency range: 15MHz to 2100MHz
- Jitter: < 225 fs (carrier 2,100MHz)
- Frequency stability: ±3ppm over 20 years and temperature
- Supply Voltage: 3.3V, 2.5V, 1.8V options
- Output Types: LVPECL, LVDS, HCSL, CML
- Physical Dimensions: 5.0 x 3.2 x 1.5 mm, RoHS compliant
- Power Consumption: approx. 75mA typical at 3.3V
- Temperature Range: -40°C to +85°C
- Shock and vibration: Meets industry standards
- Certifications: RoHS, MSL=1, Reach compliant

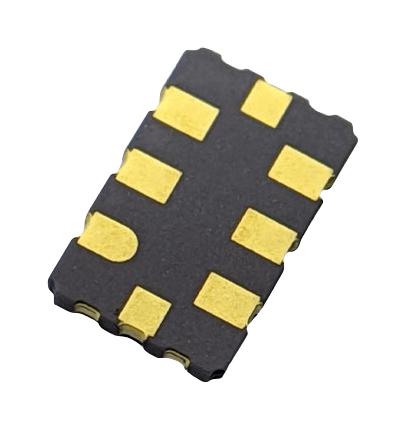

Buy the Buy Abracon TCXO Part Number ASGTX5DAF12500000 Online
Enhance your designs with this high-performance TCXO, offering ultra-low jitter and superb frequency stability over temperature and time. Its compact 5.0 x 3.2mm footprint and configurable output options like LVPECL, LVDS, HCSL, and CML make it ideal for demanding networking, RF, datacenter, test & measurement, and industrial applications. The device ensures industry-standard compliance, low power consumption, and long-term stability, making it the perfect choice for your high-reliability projects. Purchase online for quick delivery and best prices.
Buy Abracon ASGTX5DAF12500000 now and experience unmatched reliability and performance of high-stability, low-jitter oscillators for advanced communication systems.
Frequently Asked Questions
Where can I buy ABRACON ASGTX5DAF12500000?
You can click on the BUY or RFQ button to purchase ASGTX5DAF12500000 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASGTX5DAF12500000?
You can download the ASGTX5DAF12500000 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASGTX5DAF12500000?
ABRACON
