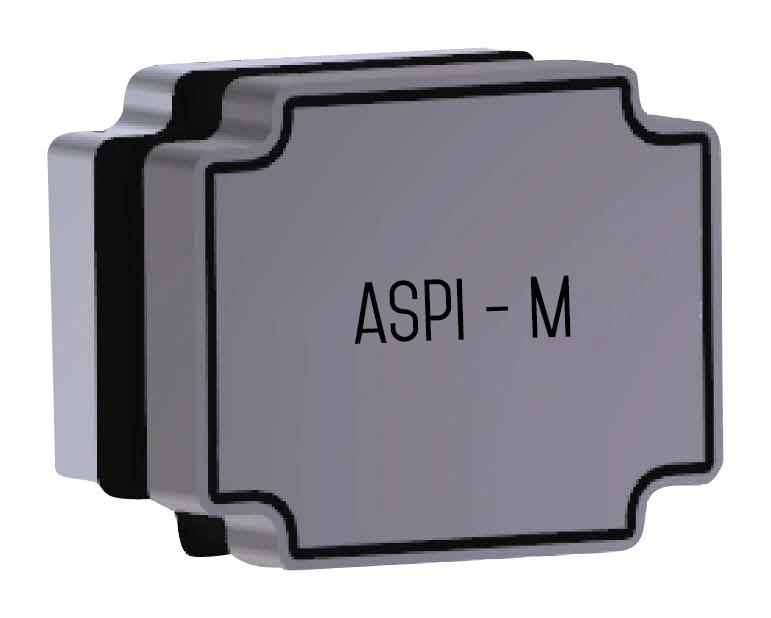

ABRACON ASPIM30151R0MT High Current Low Profile Inductor
High current, low profile inductors designed for efficient energy management in compact applications such as IoT devices, drones, robotics, and medical electronics. These inductors feature a space-saving footprint with dimensions of 2.5x2.0x1.2mm and 3.0x3.0x1.5mm, operate within a temperature range of -40°C to 125°C, and support high RMS currents up to 8A with low DCR values as low as 23mΩ. Ideal for switch mode power supplies, LED drivers, POL converters, and handheld devices due to their high saturation current and RoHS compliance.
ABRACON ASPIM30151R0MT High Current Low Profile Inductor Specifications:
- Dimensions: 2.5x2.0x1.2mm and 3.0x3.0x1.5mm
- Operating Temperature Range: -40°C to 125°C
- Maximum RMS Current: up to 8A
- DCR: as low as 23mΩ for 2512 and 27mΩ for 3015
- Inductance Range: 0.24 to 10H for 2512; 0.24 to 10nH for 3015
- RoHS/RoHS II Compliant
- MSL: 1
- Reflow Soldering Profile: Preheat 150°C to 200°C, Reflow 217°C, Peak 260°C
- Tape and reel packaging: 2000 pcs/reel
- Temperature Rating: -40°C to 125°C
- High saturation current, low profile, and high current carrying capacity
Buy the Abracon Series ASPIM High Current Inductors: ASPIM3015
Purchase Abracon high current low profile inductors online today. Designed for efficient energy storage in small form factors, these inductors support high RMS currents up to 8A, feature low DCR for energy efficiency, and operate within a wide temperature range. Ideal for switch mode power supplies, LED drivers, POL converters, medical electronics, and portable devices. Their RoHS compliance ensures environmentally friendly manufacturing, and the tape-and-reel packaging simplifies automated assembly, making them the perfect choice for engineers seeking reliable, space-saving inductors for demanding applications.
Get Abracon high current low profile inductors today—built for precision and long-lasting durability in compact electronic designs.
Frequently Asked Questions
Where can I buy ABRACON ASPIM30151R0MT?
You can click on the BUY or RFQ button to purchase ASPIM30151R0MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASPIM30151R0MT?
You can download the ASPIM30151R0MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASPIM30151R0MT?
ABRACON
