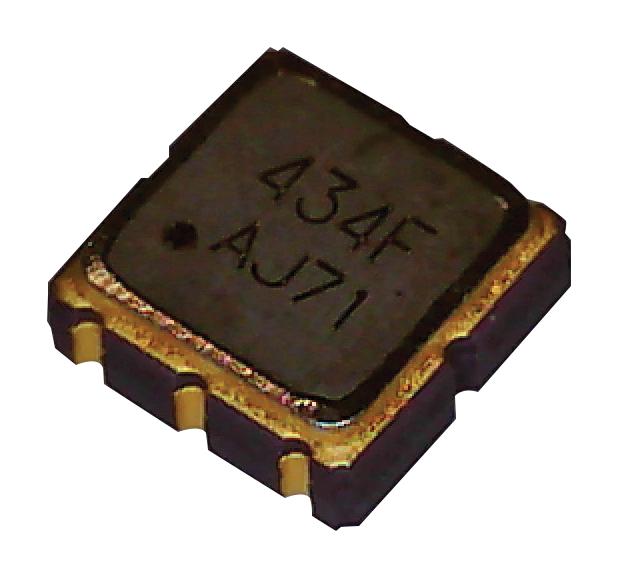

ABRACON ASR43392ET SAW Resonator
The SMD ONE PORT 433.92 MHz SAW resonator is designed for precision frequency stabilization in wireless communication systems. With a small size of 5x5x1.35mm, it offers excellent temperature stability and high quality factor of 10,500. It features a center frequency of 433.92 MHz, low insertion loss, and is RoHS compliant. Suitable for commercial and industrial applications, this resonator provides stable performance over -40°C to +85°C, making it ideal for RF modules, IoT devices, and other embedded communication solutions.
ABRACON ASR43392ET SAW Resonator Specifications:
- Center Frequency: 433.92 MHz
- Size: 5x5x1.35mm
- Tolerance: 475 KHz from Fo
- Insertion Loss: -1.3 to 2.0 dB
- Quality Factor: 10,500 unloaded
- Frequency Stability: ±40 KHz over -40°C to +85°C
- Frequency Temperature Coefficient: 0.037 ppm/°C
- Maximum DC Voltage: +10 V
- RF Power Dissipation: 10 dBm
- Operating Temp: -40°C to +85°C
- Storage Temp: -45°C to +85°C
- Insulation Resistance: 1.0 MΩ
- Motional Resistance: 16 to 26 Ω
- Motional Inductance: 61.724 nH
- Motional Capacitance: 2.1817 fF
- Shunt Capacitance: 1.9 to 2.5 pF
- RoHS Compliant
- Electrostatic Sensitive Device
Buy the Abracon Series SAW Resonator: ASR43392E
Purchase the Abracon SAW Resonator ASR43392E online today to enhance your RF modules, IoT devices, and wireless systems. Designed for demanding industrial and commercial applications, this high-precision 433.92 MHz device offers excellent temperature stability, durability, and low insertion loss. Its compact size makes it ideal for space-constrained designs, ensuring reliable performance in various operating environments. Experience seamless integration and secure your supply chain by ordering this RoHS-compliant resonator now—engineered for long-lasting accuracy and dependable RF stabilization.
Get Abracon ASR43392E today—built for high reliability and stable RF performance in wireless communication applications.
Frequently Asked Questions
Where can I buy ABRACON ASR43392ET?
You can click on the BUY or RFQ button to purchase ASR43392ET from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASR43392ET?
You can download the ASR43392ET datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASR43392ET?
ABRACON
