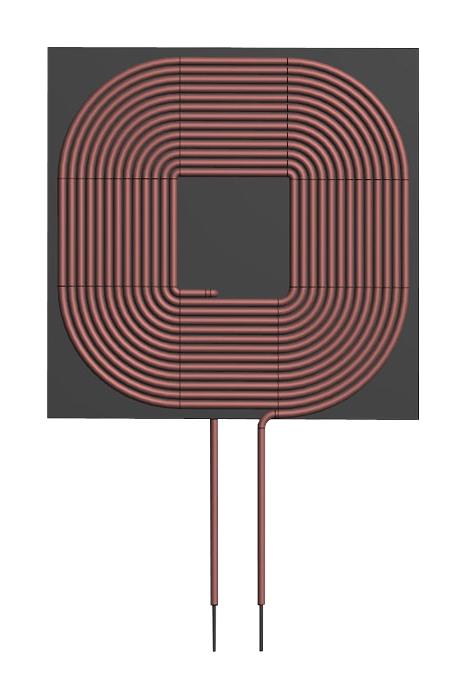

ABRACON AWCCARX404012102 Wireless Charging Receiver Coil
The 20W Wireless Charging Receiver Coil offers a compact, thin design measuring 40.0 x 40.0 x 1.2mm, optimized for wireless power transfer applications. Designed for 20W power capacity, it features high permeability shielding to protect sensitive electronics and has a high power density with low DCR. Suitable for various portable electronics, wearables, drones, industrial equipment, and fast chargers, it is RoHS compliant and meets strict manufacturing standards for reliability and performance. Ideal for integrating into modern wireless charging systems requiring efficient, space-saving receiver coils.
ABRACON AWCCARX404012102 Wireless Charging Receiver Coil Specifications:
- Dimensions: 40.0 x 40.0 x 1.2mm
- Power Capacity: 20W
- Impedance: 8.0uH+10%
- Max Q: 80 mΩ
- Test Frequency: 125KHz/1V
- Operating Temperature Range: -20°C to +105°C
- Storage Temperature Range: -40°C to +85°C
- Soldering Temperature: Max 350°C for 3 seconds
- RoHS/RoHS II Compliant
- Material: Ferrite core with winding
- Winding: 1 layer, 9 turns
- Soldering: Manual max 350°C, not suitable for wave soldering
- Packaging: 300 pieces per tray, 4 trays per carton, total 1200 pieces
- Service life: 12 months at 40°C, RH 40-65%
- Operational Conditions: -25°C to 85°C, RH 65+20%
Buy the Abracon Series Wireless Charging Coil: AWCCA-RX404012-102
Enhance your wireless charging system with the Abracon Wireless Charging Receiver Coil, ideal for 20W applications. Its compact size of 40.0 x 40.0 x 1.2mm, high permeability shielding, and high power density ensure efficient energy transfer and protection of sensitive electronics. Suitable for portable electronics, wearables, industrial equipment, and fast chargers, this RoHS-compliant coil offers reliable performance in a space-saving design. Easy to integrate and tested for durability, it’s perfect for modern wireless power solutions. Order online now for quick delivery and optimal efficiency.
Buy Abracon wireless receiver coil AWCCA-RX404012-102 now and enhance your wireless power applications with reliable, high-performance technology.
Frequently Asked Questions
Where can I buy ABRACON AWCCARX404012102?
You can click on the BUY or RFQ button to purchase AWCCARX404012102 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWCCARX404012102?
You can download the AWCCARX404012102 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWCCARX404012102?
ABRACON
