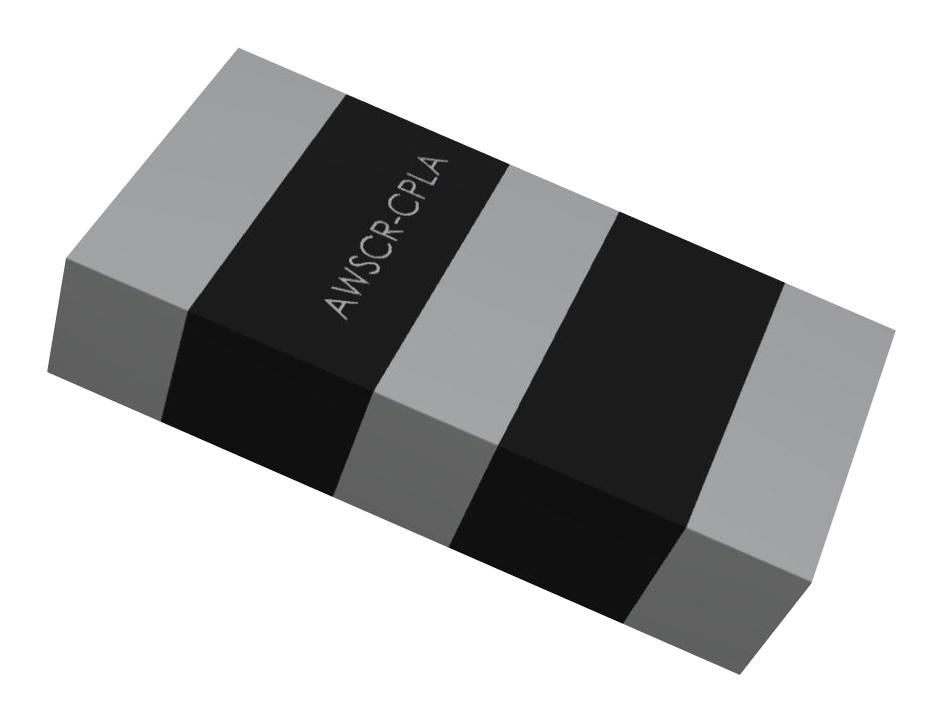

ABRACON AWSCR200CPLAC30T4 Miniature Ceramic Resonator
The ABRACON AWSCR-2.00CPLA-C30-T4 is a miniature ceramic resonator offering a compact and reliable solution for frequency control in a wide range of industrial applications. Its low resonance impedance and wide operating temperature range (-40°C to +85°C) make it suitable for metering systems, remote control devices, microprocessor circuits, and industrial control systems. The resonator is RoHS compliant and designed for ease of integration into various electronic designs. It is packaged in tape and reel format for automated assembly processes.
ABRACON AWSCR200CPLAC30T4 Miniature Ceramic Resonator Specifications:
- Frequency Range: 1.84 - 12.00 MHz
- Resonant Impedance (Ro): 100 Ω (1.84 MHz – 2.99 MHz), 50 Ω (3.00 MHz – 3.49 MHz), 30 Ω (3.50 MHz – 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 30 pF (1.84 MHz – 8.00 MHz, ±20% tolerance), Other options: 10, 15, 22, 33, 39, 47 pF; 15 pF (8.01 MHz – 12.00 MHz, ±20% tolerance), Other options: 10, 22, 30, 33, 39, 47 pF
- Frequency Tolerance: -0.5% to +0.5%
- Frequency Stability: -0.3% (2.00-8.00 MHz), -0.2% (8.01-12.00 MHz)
- Withstanding Voltage: 100 V DC, 5 s max
- Voltage Rating: (1) 6 V DC, (2) 15 Vp-p AC
- Insulation Resistance: 500 MΩ (10V, 1 min)
- Operation Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +85°C
- Aging Rate (Fosc): -0.1% to +0.1% (from initial value)
- Dimensions: 6.0 x 3.0 x 1.8 mm
- Packaging: 4000 pcs/reel
