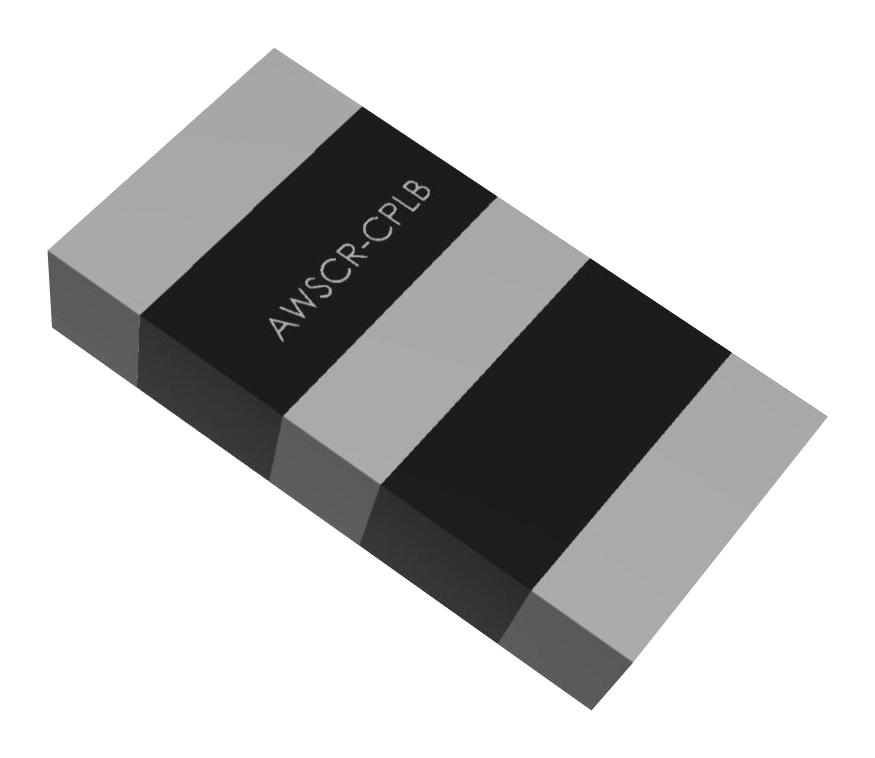

ABRACON AWSCR358CPLBC30T4 Miniature Ceramic Resonator
The ABRACON AWSCR-3.58CPLB-C30-T4 is a miniature ceramic resonator offering a compact footprint and reliable performance in a variety of industrial applications. Its low resonance impedance and wide operating temperature range (-40°C to +125°C) make it suitable for demanding environments. The resonator is RoHS compliant and designed for use in metering systems, remote control devices, microprocessor circuits, and industrial control systems. It is packaged in tape and reel format for automated assembly processes, ensuring efficient integration into production lines. Care should be taken to avoid mechanical stress during soldering and to adhere to recommended flux guidelines to maintain optimal performance and reliability.
ABRACON AWSCR358CPLBC30T4 Miniature Ceramic Resonator Specifications:
- Frequency Range: 1.84 - 12.00 MHz
- Resonant Impedance (Ro): 100 Ω (1.84 MHz – 2.99 MHz), 50 Ω (3.00 MHz – 3.49 MHz), 30 Ω (3.50 MHz – 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 30 pF (1.84 MHz – 8.00 MHz, Tol 1pF ± 20%), Other options: 10, 15, 22, 33, 39, 47 pF
- Frequency Tolerance: -0.5% to +0.5%
- Frequency Stability: -0.4% (2.00-8.00 MHz), -0.2% (8.01-12.00 MHz)
- Withstanding Voltage: 100 V DC, 5 s max
- Voltage Rating: (1) 6 V D.C., (2) 15 Vp-p A.C.
- Insulation Resistance (Ri): 500 MΩ (10V, 1 min)
- Operation Temperature: -40°C to +125°C
- Storage Temperature: -55°C to +125°C
- Aging Rate (Fosc): -0.1% to +0.1% (from initial value)
- Size: 6.0 x 3.0 x 1.8 mm
- Packaging: 4000 pcs/reel (T4)
