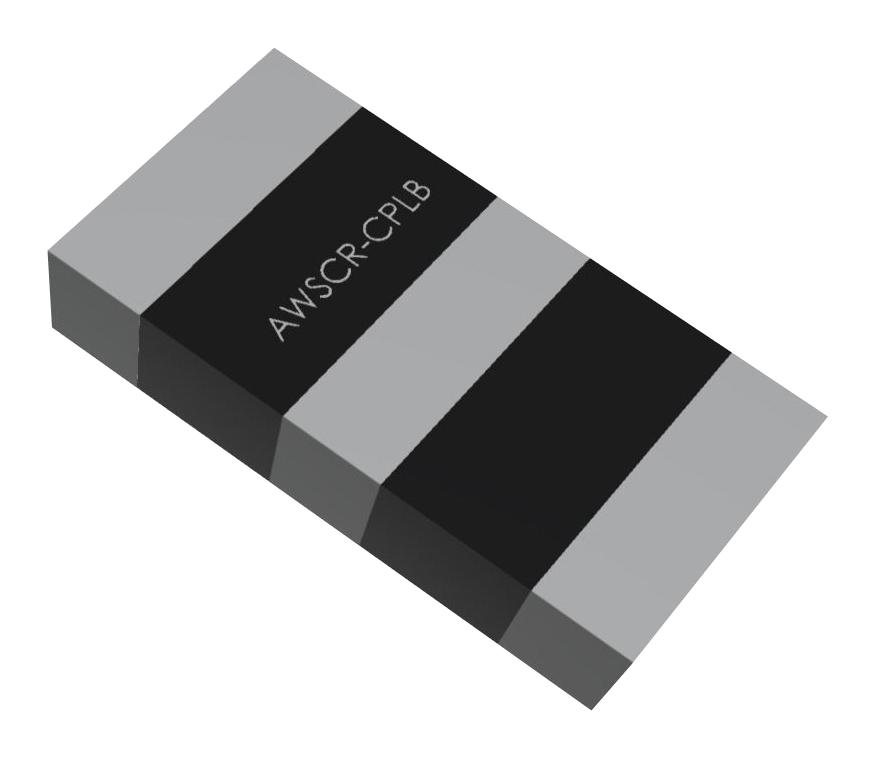

ABRACON AWSCR400CPLBC10T4 Ceramic Resonator
The miniature ceramic resonator AWSCR400CPLBC10T4 features a compact size of 6.0 x 3.0 x 1.8mm, RoHS compliance, and an operating frequency range from 1.84 MHz to 12.00 MHz. Designed for reliable performance in metering, remote control, industrial, and electronic control applications, it offers low resonance impedance, built-in capacitance options, and stable operation over a wide temperature range of -40°C to 125°C. The resonator is not moisture sensitive,RoHS compliant, and suitable for high-frequency stable oscillator circuits, ensuring precision timing and signal integrity across critical electronics systems.
ABRACON AWSCR400CPLBC10T4 Ceramic Resonator Specifications:
- Dimensions: 6.0 x 3.0 x 1.8mm
- Frequency Range: 1.84 MHz to 12.00 MHz
- Frequency Tolerance: ±1pF + 20%
- Temperature Range: -40°C to +125°C
- RoHS/RoHS I Compliant
- Material: Ceramic with Pb exemption (7e-I)
- Moisture Sensitivity Level: MSL=1
- Test Conditions: Temp.: 20°C ±15°C, Humidity: 65% ±20% RH
- Resonant Impedance: 100Ω at lower frequencies, 30Ω at higher frequencies
- Built-in Capacitance Options: 10, 15, 22, 33, 39, 47 pF
- Operating Voltage: +5V
- Frequency Stability: ±0.5% to ±0.2%
- Peak Reflow Temperature: 200°C max for 10s
- Packaging: Tape and reel, 4000 pieces per reel
Buy the Buy Abracon Ceramic Resonator Part Number AWSCR400CPLBC10T4 Online
Purchase the Abracon AWSCR400CPLBC10T4 ceramic resonator online to secure a compact, high-frequency stability component. Ideal for metering, remote control, industrial control, and electronic devices, this RoHS-compliant device offers reliable performance from 1.84 MHz to 12.00 MHz. Its small size of 6.0 x 3.0 x 1.8mm and wide operating temperature range of -40°C to 125°C make it perfect for harsh environments. Easy to install with tape-and-reel packaging, buy now and enhance your device’s timing accuracy.
Order your Abracon Series AWSCR400CPLBC10T4 ceramic resonator today and ensure high frequency stability for your precision timing circuits.
Frequently Asked Questions
Where can I buy ABRACON AWSCR400CPLBC10T4?
You can click on the BUY or RFQ button to purchase AWSCR400CPLBC10T4 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR400CPLBC10T4?
You can download the AWSCR400CPLBC10T4 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR400CPLBC10T4?
ABRACON
