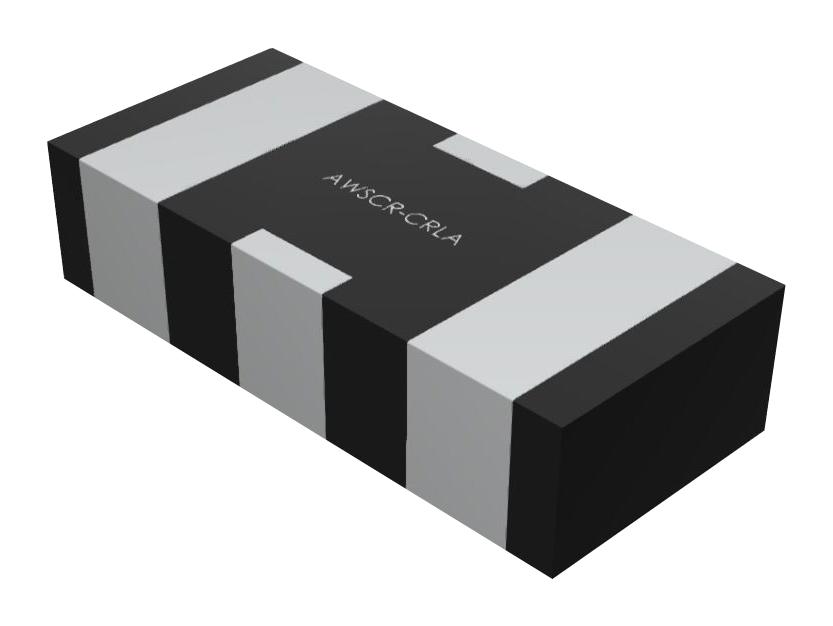

ABRACON AWSCR500CRLAC15T3 Ceramic Resonator
The Abacon AWSCR series is a miniature ceramic resonator designed for precision oscillation applications such as metering systems, remote control, microprocessors, and industrial control. Measuring just 4.5 x 2.0 x 1.0 mm, it features a RoHS-compliant, lead-free ceramic construction, and supports built-in capacitance options with a wide operating temperature range of -40°C to +85°C. This resonator offers stability, low resonance impedance, and industry-standard footprint, making it ideal for compact, reliable, and high-performance electronic systems.
ABRACON AWSCR500CRLAC15T3 Ceramic Resonator Specifications:
- Dimensions: 4.5 x 2.0 x 1.0 mm
- RoHS/RoHS I Compliant
- Pb in ceramic, exemption (7c)
- Not moisture sensitive, MSL=1
- Frequency Range: 4.00 — 12.00 MHz
- Standard Capacitance: 15 pF
- Other Capacitance Options: 10, 22, 30, 33, 39, 47 pF
- Frequency Tolerance: ±0.5 %
- Resonant Frequency (Ro): 0.2 %
- Temperature Coefficient: 420 %
- Voltage Rating: 50 V DC, 15 V AC
- Storage Temperature: -40°C to +85°C
- Aging Rate: Max -0.2 % over 10 years
- Test Conditions: 20°C to 25°C, humidity 65 ± 20 %
- Reel Packaging: 3000 pcs/reel
- Peak Reflow Temperature: 260°C for 10 seconds
- Material: Ceramic with built-in capacitance options
Buy the Buy Abracon Oscillator Part Number AWSCR500CRLAC15T3 Online
Discover the reliable and compact ceramic resonator AWSCR series from Abracon. Perfect for oscillation in metering, control systems, and microprocessors, this 4.5 x 2.0 x 1.0 mm component offers excellent stability, low resonance impedance, and industry-standard footprint. RoHS compliant and suitable for a wide temperature range of -40°C to +85°C, it ensures high-performance operation in demanding environments. Easily order online and enhance your electronic projects with this dependable resonator for precise frequency control.
Order your Abracon Series AWSCR500CRLAC15T3 ceramic resonator today and ensure high stability for your oscillation needs in compact electronic designs.
Frequently Asked Questions
Where can I buy ABRACON AWSCR500CRLAC15T3?
You can click on the BUY or RFQ button to purchase AWSCR500CRLAC15T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR500CRLAC15T3?
You can download the AWSCR500CRLAC15T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR500CRLAC15T3?
ABRACON
