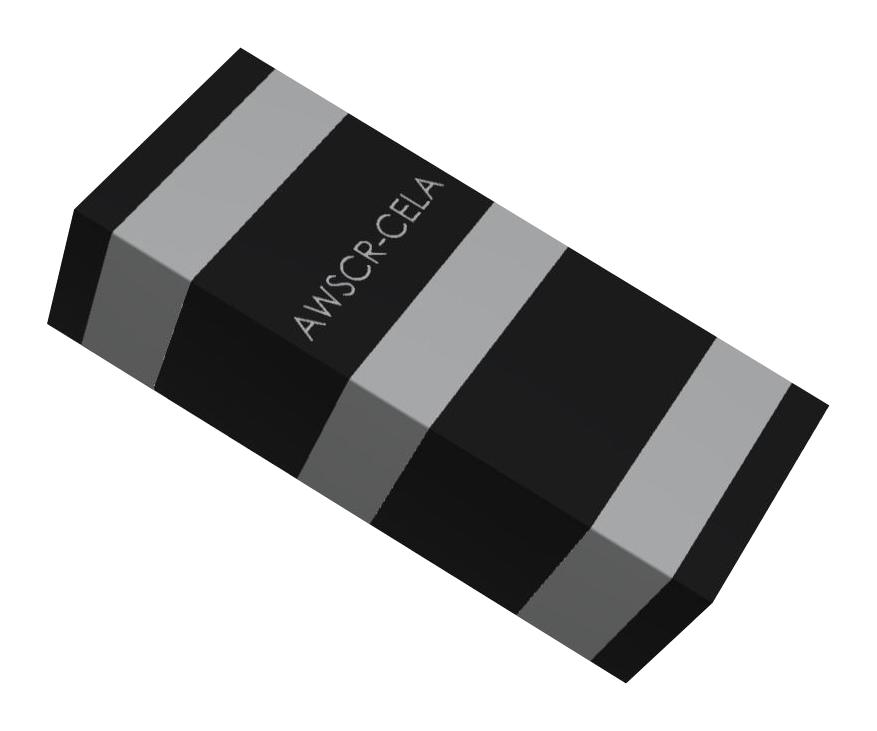

ABRACON AWSCR800CELAC33T3 Ceramic Resonator
This miniature ceramic resonator measures 3.2x13x10mm and operates at frequencies between 8.00 MHz and 12.00 MHz. It features optional built-in capacitance options of 15pF, 20%, and offers low resonance impedance with industry-standard footprints suitable for metering systems, remote control, microprocessor, industrial control, and electric appliances. Compliant with RoHS, Pb in ceramic (exemption 7e-I), this product is not moisture sensitive (MSL=1) and can operate across broad temperature ranges from -40°C to 85°C, ensuring reliable performance in various applications.
ABRACON AWSCR800CELAC33T3 Ceramic Resonator Specifications:
- Dimensions: 3.2x13x10mm
- Frequency Range: 8.00 MHz - 12.00 MHz
- Standard Capacitance: 15pF, 20% tolerance
- Temperature Range: -40°C to +85°C
- Resonant impedance: Low
- Pb in ceramic, RoHS compliant (exemption 7e-I)
- Moisture Sensitivity Level: Not moisture sensitive (MSL=1)
- Maximum Operating Voltage: 15V VDC, 50V A.C.
- Insulation Resistance: 1 GΩ at 85°C
- Aging Rate: Max 0.2% over 10 years
- Test Conditions: Temp 20-25°C, humidity 65% R.H.
- Packaging: Reel of 3000 pieces, tape size 200mm max
- Recommended Reflow Profile: 10s max at 200°C
Buy the Buy Abracon Resonator Part Number AWSCR800CELAC33T3 Online
Order the Abracon Ceramic Resonator AWSCR800CELAC33T3 online today to ensure your electronic devices operate with precision and stability. This high-quality component offers low impedance, broad temperature range, and RoHS compliance, making it ideal for microprocessors, industrial controls, and metering systems. With its industry-standard size and built-in capacitance options, it delivers exceptional performance in a compact form factor. Secure your supply now and benefit from fast delivery, competitive pricing, and trusted quality for your critical applications.
Buy Abracon AWSCR800CELAC33T3 now and experience reliable high-performance oscillation for your industrial and electronics projects.
Frequently Asked Questions
Where can I buy ABRACON AWSCR800CELAC33T3?
You can click on the BUY or RFQ button to purchase AWSCR800CELAC33T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR800CELAC33T3?
You can download the AWSCR800CELAC33T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR800CELAC33T3?
ABRACON
