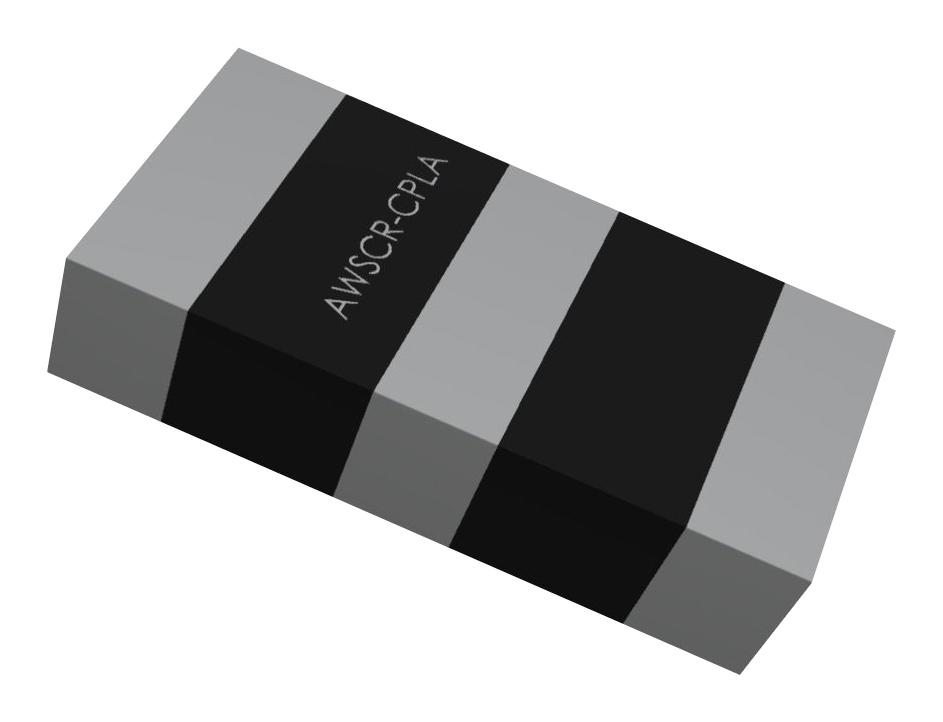

ABRACON AWSCR800CPLAC15T4 Ceramic Resonator
The AWSCR-CPLA is a miniature ceramic resonator measuring 6.0 x 3.0 x 1.8mm, compliant with RoHS standards and exempt from lead content. It offers a frequency range from 1.84 MHz to 12.00 MHz with narrow tolerance and stability, suitable for applications like metering systems, remote control, and industrial control. This high-performance resonator features low resonance impedance, built-in capacitance options, and extended operating temperatures from -40°C to 85°C. It is non-moisture-sensitive, RoHS compliant, and comes in a reel for easy automation during manufacturing.
ABRACON AWSCR800CPLAC15T4 Ceramic Resonator Specifications:
- Dimensions: 6.0 x 3.0 x 1.8mm
- Frequency Range: 1.84 MHz to 12.00 MHz (with specific bands)
- Frequency Tolerance: -0.5% to -0.2%
- Frequency Stability: ±0.03%
- Resonant Impedance (Ro): varies per frequency
- Built-in Capacitance: options include 10, 15, 22, 33, 39, 47 pF
- Voltage Rating: 10V DC
- Withstanding Voltage: 100V AC, 5s max
- Operating Temperature: -40°C to +85°C
- RoHS/RoHS I Compliance
- Pb in ceramic: Exemption 7e-I
- Moisture Sensitivity Level: MSL=1
- Storage Temperature: -40°C to +85°C
- Reel Packaging: 4000 pieces/reel
- Recommended Reflow Profile: Peak 260°C within 10s, preheat within 20-40s
Buy the Buy Abracon Ceramic Resonator Part Number AWSCR800CPLAC15T4 Online
Order the Abracon AWSCR-CPLA ceramic resonator online for high-quality performance in industrial control, metering, and remote systems. This compact, RoHS compliant component measures 6.0 by 3.0 by 1.8mm, offering a frequency range from 1.84 MHz to 12.00 MHz with excellent temperature stability from -40°C to +85°C. Featuring low resonance impedance and built-in capacitance options, it is ideal for microprocessor applications and electronic device manufacturing. Reels of 4000 units facilitate efficient production, ensuring reliable operation in diverse environments. Purchase now for dependable oscillation solutions compatible with modern industrial systems.
Get Abracon AWSCR-CPLA today—built for precision, wide frequency ranges, and long-lasting durability.
Frequently Asked Questions
Where can I buy ABRACON AWSCR800CPLAC15T4?
You can click on the BUY or RFQ button to purchase AWSCR800CPLAC15T4 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR800CPLAC15T4?
You can download the AWSCR800CPLAC15T4 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR800CPLAC15T4?
ABRACON
