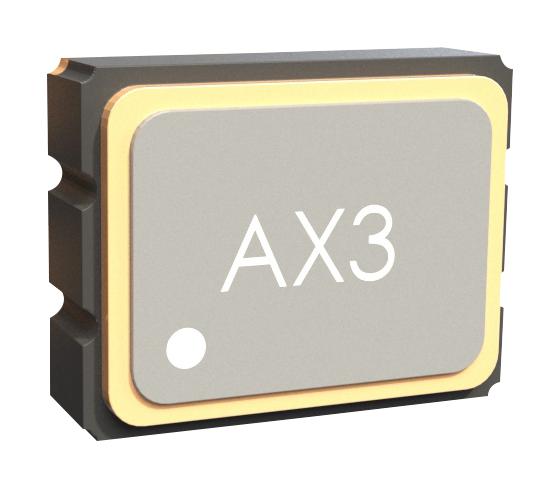

ABRACON AX3PBF11250000 Crystal Oscillator
The ClearClock Ultra-Low Jitter & Power Optimized Crystal Oscillator offers exceptional low RMS jitter of less than 80 femtoseconds at 156.25MHz, ensuring high signal integrity for demanding applications. It features industry-standard frequencies between 100MHz to 200MHz, with minimal power consumption at 16mA in LVDS mode at 156.25MHz. Designed with a compact 3.2 x 2.5 mm footprint, it provides stability over -40°C to +85°C. Available with LVPECL, LVDS, and HCSL differential outputs, ideal for test, measurement, and high-speed communication networks.
ABRACON AX3PBF11250000 Crystal Oscillator Specifications:
- Frequency Range: 100MHz to 200MHz
- RMS Phase Jitter: < 80fs at 156.25MHz
- Supply Voltage Options: 3.3V, 2.5V, 1.8V
- Power Consumption: 16mA (LVDS @ 156.25MHz)
- Frequency Stability: 425ppm over -40°C to +85°C
- Environmental Temperature Range: -40°C to +85°C
- Package Dimensions: 3.2 x 2.5 x 1.0 mm
- Output Types: LVPECL, LVDS, HCSL
- RoHS/RoHS II Compliant
- MSL Level: 1
- Storage Temperature: -55°C to +150°C
- Start-up Time: < 2.5 ms
- Duty Cycle: 45% to 55%
- Rise/Fall Time: 300-500 ps
- Output Voltage: Voh 1.40-1.60V, Vol 0.66-0.74V (LVPECL)
- Enabled/Disabled with specific timing and current consumption
- Application includes test & measurement, data centers, optical Ethernet, RF systems
Buy the Abracon AX3PBF11250000 – Reliable Crystal Oscillator for Industrial Applications
Purchase the Abracon crystal oscillator online today to ensure high reliability and ultra-low jitter performance. Designed for industrial, communications, and measurement applications, this oscillator provides superior stability, minimal power consumption, and a compact footprint. Its wide frequency range of 100MHz to 200MHz makes it versatile for various high-speed digital systems. Easy to integrate into your design, it guarantees long-term stability over -40°C to +85°C, suitable for demanding environments. Order now for fast delivery and dependable performance.
Get Abracon AX3PBF11250000 today—built for precision and long-lasting durability in high-speed communication circuits.
Frequently Asked Questions
Where can I buy ABRACON AX3PBF11250000?
You can click on the BUY or RFQ button to purchase AX3PBF11250000 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3PBF11250000?
You can download the AX3PBF11250000 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3PBF11250000?
ABRACON
