ABRACON AX7DAF11250000C Crystal Oscillator
The power-optimized 0.12ps crystal oscillator offers industry-standard 5x7mm footprint with support for +50ppm to +100ppm stability, operating from -40°C to 85°C. It features low jitter, high frequency range from 50MHz to 2100MHz, and supports LVPECL, HCSL, LVDS, and CML outputs. Ideal for networking, RF systems, base stations, test equipment, and cloud storage. The device is RoHS compliant, MSL 1 rated, and ESD sensitive, delivering precise timing with minimal power consumption across a wide temperature range.
ABRACON AX7DAF11250000C Crystal Oscillator Specifications:
- Footprint: 5x7mm industry standard
- Frequency Range: 50MHz to 2100MHz
- Carrier Frequency Stability: +50ppm to +100ppm over temperature
- Temperature Operating Range: -40°C to 85°C
- Supply Voltage: 3.3V, 1.8V options available
- Jitter: 0.12ps typical
- Output Types: LVPECL, HCSL, LVDS, CML
- Current Consumption: up to 70mA
- RoHS and RoHS II Compliant
- ESD Sensitive, MSL 1 rated
- Supports multiple stability options including ±25ppm, ±50ppm
- Mechanical Dimensions: 7.0 x 5.0 x 1.8 mm
- Reflow Profile: included for manufacturing reliability
- Storage Temperature: -55°C to +125°C

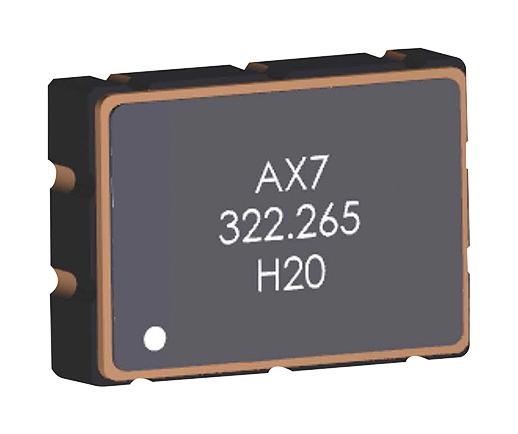

Buy the Abracon AX7DAF11250000C – Reliable Crystal Oscillator for Industrial Applications
Upgrade your designs with the Abracon AX7DAF11250000C crystal oscillator, offering high frequency stability up to 2100MHz, low jitter, and wide temperature range. Perfect for networking, RF communications, test equipment, and cloud storage applications. Supports multiple output types including LVPECL, HCSL, LVDS, and CML, providing flexibility for different systems. RoHS compliant and rated MSL 1 ensures quality and manufacturing ease. Reliable and energy-efficient, this oscillator is ideal for demanding industrial and telecommunications settings, delivering precise timing where it matters most.
Order your Abracon SeriesAX7DAF11250000C crystal oscillator today and enhance your projects with dependable, high-performance timing solutions.
Frequently Asked Questions
Where can I buy ABRACON AX7DAF11250000C?
You can click on the BUY or RFQ button to purchase AX7DAF11250000C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX7DAF11250000C?
You can download the AX7DAF11250000C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX7DAF11250000C?
ABRACON
