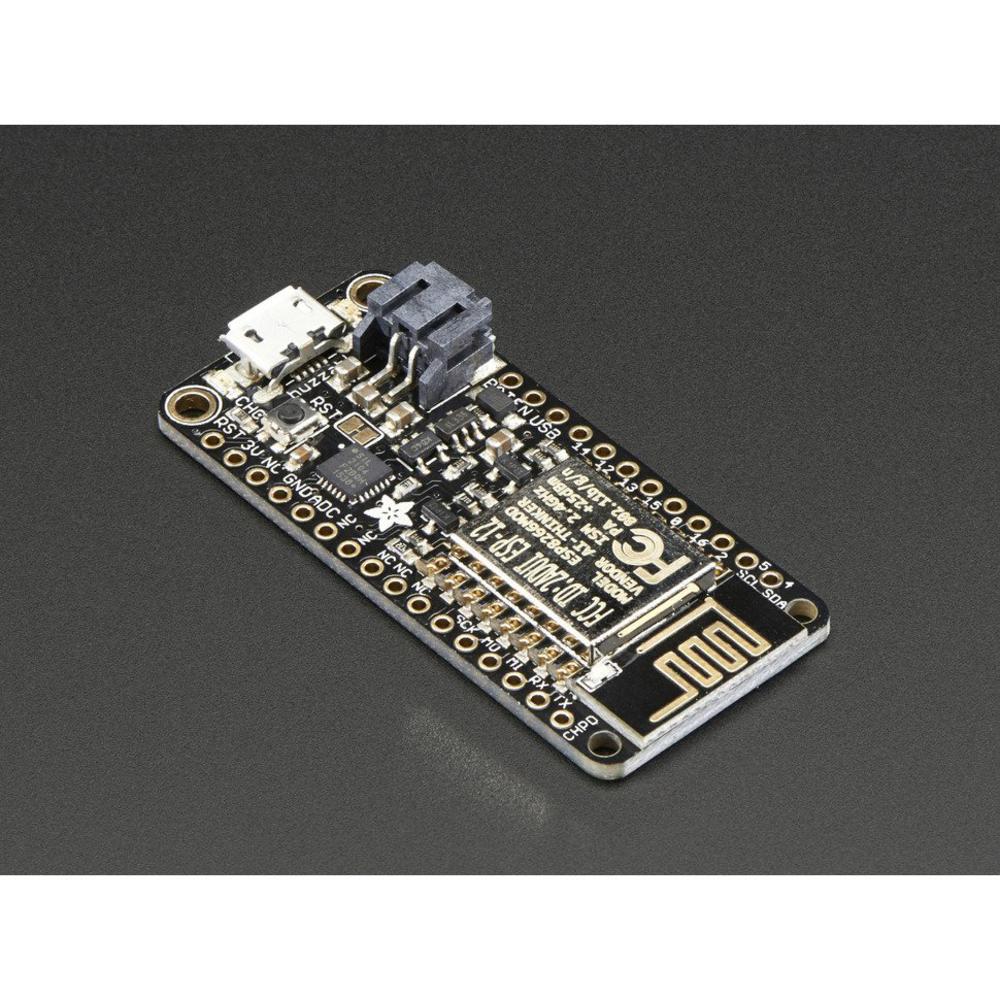

At the Feather HUZZAH's heart is an ESP8266 WiFi microcontroller clocked at 80 MHz and at 3.3V logic. This microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core. We wired up a high-quality SiLabs CP2104 USB-Serial chip that an upload code at a blistering 921600 baud for fast development time. It also has auto-reset so no noodling with pins and reset button pressings. The CP2104 has better driver support than the CH340 and can do very high speeds without stability issues. To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when its available.




Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in

Light as a (large?) feather - 9.7 grams

ESP8266 @ 80MHz with 3.3V logic/power

4MB of FLASH (32 MBit)

Built in WiFi 802.11 b/g/n

3.3V regulator with 500mA peak current output

CP2104 USB-Serial converter onboard with 921600 max baudrate for speedy uploading

Auto-reset support for getting into bootload mode before firmware upload

9 x GPIO pins - can also be used as I2C and SPI

1 x analog inputs 1.0V max





Built in 100mA LiPoly charger with charging status indicator LED, can also cut a trace to disable the charger

Pin #0 red LED for general purpose blinking. Pin #2 blue LED for bootloading debug & general purpose blinking

Power/enable pin

4 mounting holes

Reset button23mm x 51mm x 7.2mm / 0.9" x 2" x 0.28"

Weight: 6.2
