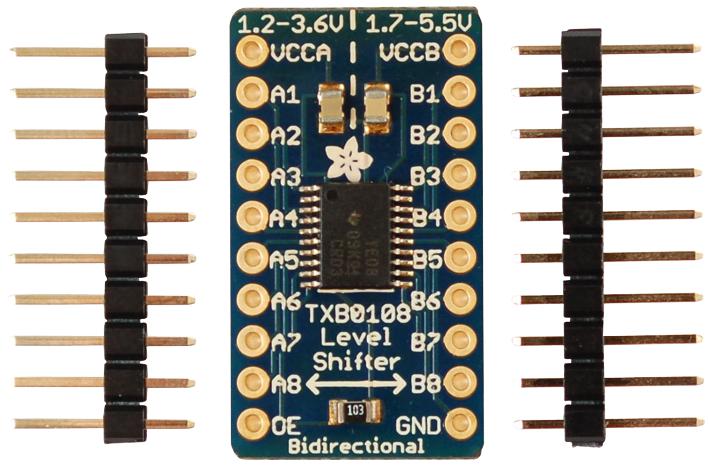

ADAFRUIT 395 Bi-Directional Logic Level Converter
The TXB0108 bidirectional level converter enables seamless voltage level shifting between different logic levels, supporting voltage ranges from 1.2V to 3.6V on port A and 1.65V to 5.5V on port B. It automatically detects signal direction, simplifying connections. This breakout board includes 0.1uF decoupling capacitors on both sides and a 10K pull-up resistor on the output enable pin, allowing for immediate use without soldering fine-pitch packages. Its low power consumption and VCC isolation make it suitable for power management applications. Note that it may not perform well with I2C due to strong pull-ups that interfere with automatic direction detection.
ADAFRUIT 395 Bi-Directional Logic Level Converter Specifications:
- Voltage Range: 1.2V to 3.6V on port A, 1.65V to 5.5V on port B
- Automatic signal direction detection
- Includes 0.1uF decoupling capacitors on both sides
- 10K pull-up resistor on output enable pin
- Low power consumption with VCC isolation
- Compatible with diverse logic levels
- Supports power management applications
- Not suitable for I2C bus due to strong pull-ups causing interference
- Operating temperature: -40°C to +85°C
- Package: Dual in-line package (DIP), 16-pin SOIC
Buy the Adafrutt TXB0108 – Reliable Bidirectional Logic Level Converter for Industrial Applications
Purchase the Adafrutt TXB0108 bidirectional level converter online today for dependable voltage level shifting in your electronics projects. Its automatic detection of signal direction, inclusion of decoupling capacitors, and built-in pull-up resistor make it ready for immediate use. Ideal for powering microcontrollers, sensors, and displays operating at different logic voltages, this converter simplifies connections without the need for complex wiring or soldering. Perfect for power management and ensuring device safety in industrial environments.
Order your Adafrutt TXB0108 series low-voltage bidirectional level converter today and ensure seamless voltage translation for your industrial projects with ease.
Frequently Asked Questions
Where can I buy ADAFRUIT 395?
You can click on the BUY or RFQ button to purchase 395 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 395?
You can download the 395 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 395?
ADAFRUIT
