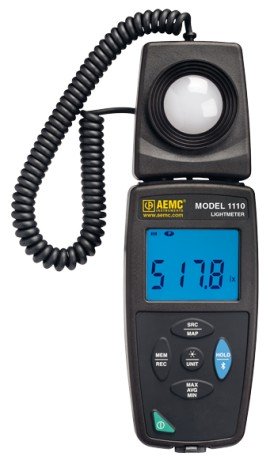

AEMC Instruments 1110 Light Meter
This portable and user-friendly light measurement instrument features optical sensors calibrated to match the human eye's response, making it ideal for workspace analysis and lighting planning. It offers versatile recording capabilities that can be easily configured via dedicated DataView® software on a computer. The device includes an ergonomically designed case, a large backlit display, and intuitive controls. Key features include selectable light sources (natural, LED, fluorescent), spectral error compensation, a removable light sensor with an expandable cable up to 48 inches, area mapping with multiple measurement storage, minimum, maximum, and average readings, hold function, spot or continuous recording with up to 1,000,000 measurements stored in 8MB flash memory, and connectivity options such as USB and Bluetooth. Powered by batteries or USB, it also features a magnetic mount for flexible use.
AEMC Instruments 1110 Light Meter Specifications:
- Measurement Range: 0.01 Ix to 200,000 Ix, 0.01 fc to 18,580 fc
- Accuracy: ±6% of R on LEDs (3,000K to 6,000K), ±9% of R on fluorescent sources, ±4% of R with LED and flou mode (at 4,000K)
- Display Resolution: 1 (1,000 to 9,999), 0.1 fc (100.0 to 999.9 fc), 10 (10,000 to 99,999), 1 fc (1,000 to 9,999 fc), 100k beyond 10 fc beyond
- Memory: 8MB flash, stores up to 1,000,000 measurements, non-volatile
- Power: 3x1.5V AA alkaline batteries or USB micro-USB adaptor, Battery Life: 500 hours
- Dimensions: Case 5.9 x 2.84 x 1.28 inches, Sensor 2.64 x 2.52 x 1.38 inches
- Weight: 12.2 oz (345g) with batteries
- Operating Temperature: -10°C to 60°C, Storage Temperature: -20°C to 60°C
- Ingress Protection: IP50 with closed USB connector and sensor cap
- Connectivity: USB 2.0, Bluetooth
- Display: Blue luminescent backlit LCD
- Additional Features: Spectral error compensation, area mapping, hold, min-max-avg measurements, magnetic mount, DataView software included
Buy the Brand 1110 – Reliable Light Meter for Industrial Applications
Order the ITM 1110 Lightmeter Data Logger online today and experience precise light measurement with versatile features including spectral correction, area mapping, and wireless connectivity. Its ergonomic design, high-resolution backlit display, and extensive memory make it suitable for industrial, commercial, and scientific applications. Whether for lighting design, workspace compliance, or research, this portable device delivers accurate and reliable readings. Easily configure measurement modes, store large datasets, and analyze results with included DataView software, ensuring optimal light conditions for any environment.
Get ITM lightmeter 1110 today—built for precision and long-lasting durability in lighting measurements and workspace analysis.
Frequently Asked Questions
Where can I buy AEMC Instruments 1110?
You can click on the BUY or RFQ button to purchase 1110 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 1110?
You can download the 1110 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 1110?
AEMC Instruments
