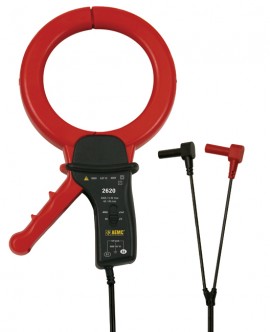

AEMC INSTRUMENTS 2620 Leakage Current Transformer
The AEMC Model 2620 is a sensitive AC current transformer designed for detecting low current faults on high current loads. It can measure differential or leakage currents as low as 500µA and supports continuous current measurements up to 400A. The device offers two output ranges: 1mV/mA AC or 1mV/A AC, with standard 4mm banana plug connections compatible with most multimeters. Featuring a 4-inch jaw opening, it can measure currents from 500µA up to 200A. This versatile tool is ideal for analyzing unbalanced currents, grounding conductor leaks, and ground loop currents, making it suitable for preventive maintenance, troubleshooting electrical distribution systems, and high-accuracy low-current measurements on three-phase systems.
AEMC INSTRUMENTS 2620 Leakage Current Transformer Specifications:
- Working Voltage: 30 to 600V
- Frequency: 45 to 65Hz
- Resistance Per Phase: 3.9kΩ ± 5%
- Relay Duty Time: Slow 0.5 s, Fast 2.3 s
- Power Source: Eight 1.5V AA batteries
- Power Consumption: 180mA (approx)
- Battery Life: 40 hours
- Dimensions: 8.7 x 5.4 x 5.9 inches (220 x 136 x 150mm)
- Weight: 2.9 lbs (1.3 kg)
- Safety: Dielectric Strength Test 6kV, CAT III 600V
- Temperature Range for Operation: 0°C to 50°C, Storage: -40°C to 70°C
- Output Signal: 1mV/mA AC or 1mV/A AC; 4mm banana plug connections
- Measurement Range (4A Range): 0.5mA to 4A; (400A Range): 0.5A to 400A
- Accuracy: ±3% at 4A range, ±0.5% at 400A range
- Shielded clamp with 4-inch jaw opening
- Compatible with most multimeters with 1 MΩ input impedance
Buy the AEMC Series 2620 Ground Fault /Leakage Current Clamp: 2620
Order the AEMC 2620 leakage current transformer online today and enjoy a reliable, high-accuracy device designed for detecting faults, grounding leaks, and analyzing unbalanced currents in high-current electrical systems. Its versatile 1mV/mA or 1mV/A output ranges, durable construction, and compatibility with standard multimeters make it ideal for preventive maintenance, troubleshooting, and ensuring electrical safety. Invest in this essential tool for accurate measurement and quick fault location to minimize downtime and enhance system reliability.
Get AEMC 2620 today—built for precision and long-lasting durability in electrical leakage detection and troubleshooting.
Frequently Asked Questions
Where can I buy AEMC INSTRUMENTS 2620?
You can click on the BUY or RFQ button to purchase 2620 from an authorized AEMC INSTRUMENTS distributor.
How do I troubleshoot issues or seek technical support for part 2620?
You can download the 2620 datasheet or visit the AEMC INSTRUMENTS website for support.
Who is the manufacturer of 2620?
AEMC INSTRUMENTS
