AEMC Instruments 675 Datasheet & Stock

AEMC 675 Offers

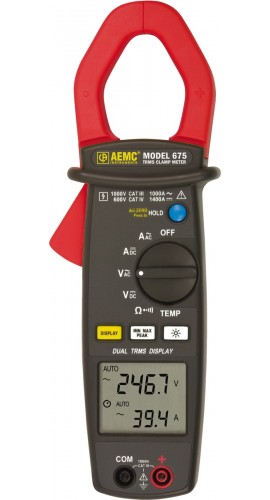

General purpose professional clamp-on meter that measures up to the toughest standards. This meter offers a complete set of measurement ranges (AC Amps, DC Amps, AC Volts, DC Volts, Ohms, Continuity with beeper, Frequency from V or A, and Temperature) and is in compliance with international safety and quality standards to ensure professional and reliable measuring tools.

This Meter is sized for comfortable, one-handed operation. The tapered and hooked jaw design facilitates maneuvering in crowded wiring and breaker panels, making it easy to select conductors. The jaw opening accommodates one 750kcmil cable or two 350kcmil cables. The large and easy-to-read 9999-count LCD features comprehensive user information symbols, such as low battery, polarity, overload, and an analog bargraph for easy trend readings.

Equipped with a Data Hold function that freezes the measurement for later viewing, Min/Max, and Peak function for capture of signals. True RMS clamp-on meter that provides RMS measurements for today's non-linear electrical environments.

Features

Standard size, full function clamp-on meter
1000AAC/DC current measurements
1400VDC volt measurements
TRMS measurements
Resistance measurement to 10,000Ω
Continuity with beeper below 35Ω
Frequency measurements from V and A
1ms Peak function for fast capture of signals
Hold function to "freeze"" readings
Designed to measure Amps and Volts at the same time
Push-button for easy ADC zeroing
Large easy-to-read 9999-count backlit display
Includes test leads and soft carrying case


Applications

Commercial, industrial, residential and HVAC/R troubleshooting
Power panel, junction box and battery bank monitoring
AC or DC motor testing
Power plant troubleshooting
Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
