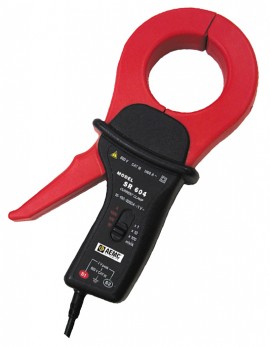

AEMC Instruments SR604 Current Transformer Probe
This general-purpose 1000 AAC current probe features a 1000:1 ratio with an output of 1 mA per ampere measured through the jaw. It includes a 5-foot (1.5 meters) lead terminated with shrouded banana plugs. The rounded jaw design allows for easy measurement around large conductors, making it ideal for power applications requiring high accuracy and low phase shift. The SR604 functions as a traditional current transformer with a ratio of 1000:1 and provides current outputs in mA/A, suitable for use with digital multimeters, power and harmonic meters, data loggers, recorders, or oscilloscopes. It supports measurement ranges from 100 mA to 1200 AAC and can accommodate conductors up to two 500 kcmil cables. The ergonomic design ensures ease of operation, and it conforms to EN 61010, 600V Category III safety standards. This probe is well-suited for power quality analysis, monitoring large industrial loads, measuring around cable bundles, and waveform analysis.
AEMC Instruments SR604 Current Transformer Probe Specifications:
- Model: SR604
- Nominal Range: 1000A
- Measurement Range: 0.1 to 1200A
- Transformation Ratio: 1000:1
- Output Signal: 1mA/A (1Aac @ 1000A)
- Accuracy (1000A Range): 0.1 to 10A 3% + 0.1A, 50A 1.5%, 200A 0.75%, 1000A 0.5%, 1200A 0.5%
- Phase Shift (1000A Range): 50A 1.5°, 200A 0.75°, 1000A 0.5°, 1200A 0.5°
- Overload: 1200A for 40 min ON, 20 min OFF
- Frequency Range: 30Hz to 5kHz; current derating above 1kHz
- Load Impedance: Working Mode 5Ω max, Common Mode Voltage 600V Cat. III
- Output Termination: Mechanical banana plug, 5 ft (1.5m) lead
- Operating Temperature: -14° to 122°F (-10° to 50°C)
- Storage Temperature: -4° to 158°F (-20° to 70°C)
- Maximum Conductor Size: 2.05" (52mm)
- Jaw Opening: 2.25" (57mm)
- Maximum Bus Bar Size: 1.95 x 0.19" (50 x 5mm)
- Material: Polycarbonate handle, UL94 VO, Jaws polycarbonate, UL94 VO
- Safety Standards: EN 61010-2-032, UL approved for Canada and US, Double insulation, CE Mark
- Dimensions: 4.37 x 8.50 x 1.77" (111 x 216 x 45mm)
- Weight: 1.21 lbs (550g)
Buy the Buy AEMC Current Probe Part Number SR604 Online
Order the AEMC SR604 current transformer probe online for accurate power quality measurements and industrial applications. Its ergonomic design, capable of measuring up to 1200A AC, ensures reliable performance. Includes a 5-foot lead with banana plugs for easy connection to digital multimeters, oscilloscopes, or data loggers. Conforms to EN 61010 and UL safety standards. Ideal for monitoring large conductors, waveform analysis, and power load assessments. Experience high accuracy, low phase shift, and durability in a professional power measurement tool.
Get AEMC SR604 today—designed for precise power measurements with low phase shift and high safety standards.
Frequently Asked Questions
Where can I buy AEMC Instruments SR604?
You can click on the BUY or RFQ button to purchase SR604 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part SR604?
You can download the SR604 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of SR604?
AEMC Instruments
