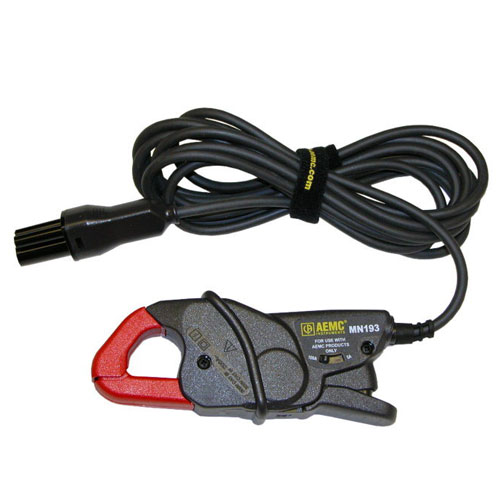

AEMC 214036 AC Current Probe
This AC current probe is compatible with the L104, L564, PowerPad, and PEL series instruments. It allows for accurate measurement of AC current in various electrical systems, providing reliable readings for testing and analysis.
AEMC 214036 AC Current Probe Specifications:
- Measurement Range: 10A to 6500A (model dependent)
- Compatibility with series: L104, L564, PowerPad, PEL series
- Power Supply: 9V Alkaline Battery, up to 70 hours typical
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -40°C to 158°C
- Protection Index: IP 40 (probe), IP 30 (jaws open)
- Maximum Voltage: 600V CAT III / 300V CAT IV
- Jaws Opening: Adjustable with protective guard
- Dimensions: 6.6 x 6.2 x 0.98 inches (for 24-inch model), 11 x 10.4 x 0.98 inches (for 36-inch model)
- Weight: 270g (24-inch model), 220g (36-inch model)
- Environmental: Indoor, Relative Humidity 10%-85%, Altitude <2000m
Buy the AEMC Series AC Current Probe: 214036
Enhance your electrical testing capabilities with the AEMC AC Current Probe, compatible with multiple power quality meters. Designed for accurate AC current measurement, it ensures safety and precision in electrical analysis. Featuring robust construction with IP 40 protection index and a wide measurement range up to 6500A, this probe facilitates reliable testing in a variety of electrical environments. Easy to operate, compact, lightweight, and equipped with a shielded lead, it supports efficient maintenance and troubleshooting. Order online today to upgrade your testing tools for precise power analysis and safety compliance.
Buy AEMC 214036 AC Current Probe now and experience unmatched reliability and performance in power measurement testing.
Frequently Asked Questions
Where can I buy AEMC 214036?
You can click on the BUY or RFQ button to purchase 214036 from an authorized AEMC distributor.
How do I troubleshoot issues or seek technical support for part 214036?
You can download the 214036 datasheet or visit the AEMC website for support.
Who is the manufacturer of 214036?
AEMC
