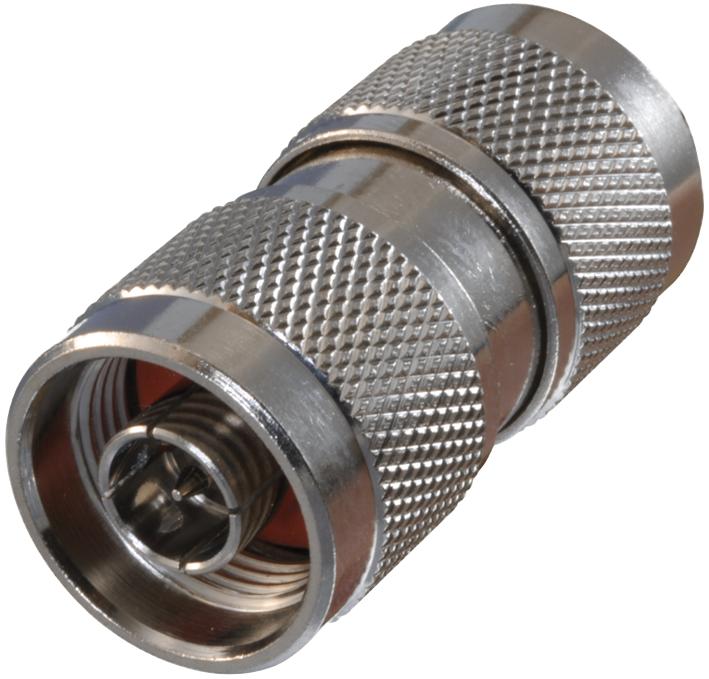

AIM CAMBRIDGE - CINCH CONNECTIVITY 268009 CPAD800 Splice Connector
The AIM CAMBRIDGE 26-8009 is a CPAD800 N(M-M) Splice UG-57B/U connector designed for secure and efficient signal transmission. Constructed with a brass body and nut, both nickel-plated, and a PTFE insulator, this connector ensures durability and optimal performance. The gold-plated brass contacts provide excellent conductivity and corrosion resistance. This connector is RoHS compliant and suitable for various applications requiring reliable RF connectivity. Refer to Emerson Document P/N 26-0000 for detailed technical specifications.
AIM CAMBRIDGE - CINCH CONNECTIVITY 268009 CPAD800 Splice Connector Specifications:
- drawing_no: 26-8009
- revision: 01
- release_date: SEP 17,09
- part_no: 26-8009-CUST
- description: CPAD800 N(M-M) Splice UG-57B/U
- application: Adapter
- crimp_tool: N/A
- impedance: 50OHM
- frequency_range: N/A
- body_material: Brass, Nickel Plated
- nut_material: Brass, Nickel Plated
- insulator_material: PTFE
- contact_material: Brass, Gold Plated
- rohs_compliance: Yes
- tolerance: 40.2 ±0.5
- dimension_1: 1.582 in
- dimension_2: 17.0
- dimension_3: .671 in
- dimension_4: 5/8-24UNEF-2B
- dimension_5: 20.0.787 in
